الوصف
الميزات الرئيسية
1. Superior Manufacturing Consistency
-
Constructed with advanced, durable materials resistant to environmental factors and physical stress
-
Automated manufacturing processes ensure dimensional precision and repeatable performance
-
Reduced manual handling minimizes contamination and quality variations
2. Enhanced Optical Performance
-
Precision UPC polishing delivers low insertion loss and stable signal transmission
-
High-grade ceramic ferrules ensure accurate alignment and reliable connections
-
Consistent performance across all 12 channels for parallel applications
3. Premium Single-Mode Performance
-
Manufactured with G.652.D compliant single-mode fiber for optimal performance across multiple wavelengths
-
Each pigtail undergoes comprehensive optical testing before shipment
-
Proven reliability in commercial and carrier-grade installations worldwide
المواصفات الفنية
| المعلمة | المواصفات |
|---|---|

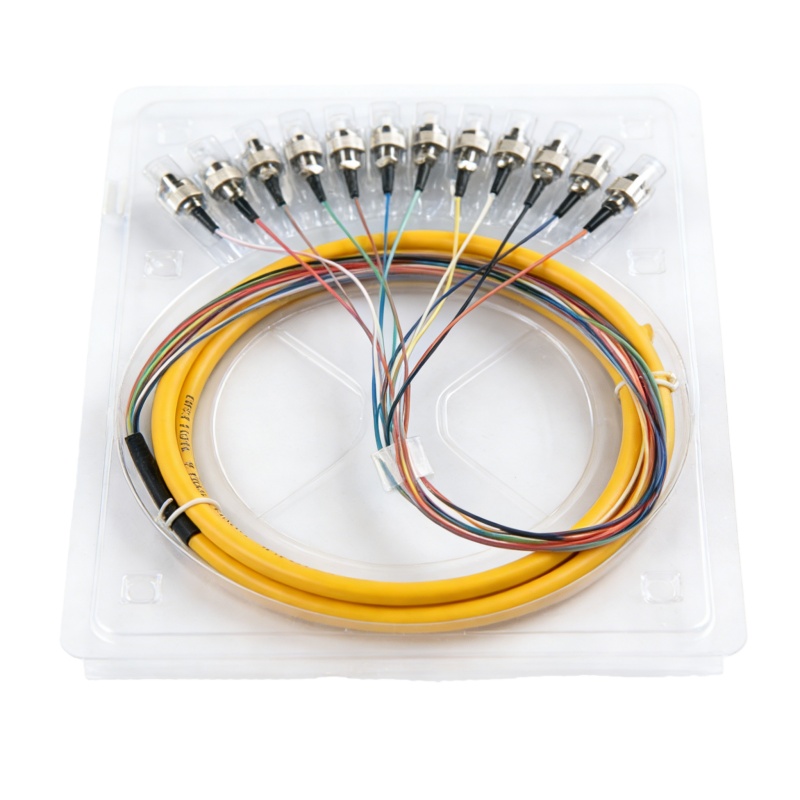

| اسم المنتج | 12-core Fiber Pigtail (FC/UPC) |
| نوع الموصل | FC/UPC (also available in SC/UPC, SC/APC, FC/APC, LC/UPC, LC/APC, ST/UPC) |
| نوع الألياف | Single-Mode (SM), G.652.D |
| اللون | أصفر |
| الطول الموجي التشغيلي | 1310 nm, 1490 nm, 1550 nm |
| فقدان الإدراج | < 0.2 dB (typical), < 0.3 dB (maximum) |
| خسارة الإرجاع | > 50 dB |
| المتانة | ≥ 1000 دورة تزاوج ≥ 1000 دورة تزاوج |
| Cable Material | LSZH (منخفضة الدخان خالية من الهالوجين) |
| قوة الشد | > 100 N |
| درجة حرارة التشغيل | -40 درجة مئوية إلى +85 درجة مئوية |
التطبيقات
-
Data center interconnects and structured cabling
-
Telecommunication central office equipment
-
FTTx distribution points and aggregation nodes
-
Enterprise network backbones
-
Test and measurement equipment interfaces
-
Digital broadcasting and media transmission systems
أسئلة وأجوبة احترافية
Q1: What are the primary advantages of FC/UPC connectors over FC/APC in specific applications?
A: FC/UPC connectors provide superior performance in digital communication systems where low insertion loss is prioritized over minimal back reflection. With typical return loss >50 dB and insertion loss <0.2 dB, they’re ideal for Gigabit Ethernet, 10G-40G-100G data links, and digital video transmission where signal attenuation is more critical than reflectance control.
Q2: How does the 12-core configuration benefit modern network deployments?
A: The 12-core design supports high-density installations, reducing physical space requirements by approximately 60% compared to individual pigtails. This configuration is particularly valuable in data center environments, fiber distribution frames, and GPON OLT installations where port density and cable management are significant considerations.
Q3: What testing protocols ensure the quality of these UPC connectors?
A: Each connector undergoes 3D interferometer testing to verify surface roughness (<20 nm) and radius of curvature (10-25 mm). Optical testing includes TIA-455-107 insertion loss verification and IEC 61300-3-6 return loss measurement. Additionally, environmental testing per IEC 61300-2-22 validates performance across temperature variations and mechanical stress conditions.
Q4: Can these pigtails be deployed in outdoor or harsh environments?
A: Yes, with appropriate outdoor-rated patch panels or enclosures. The LSZH jacket provides flame resistance and low toxicity, while the temperature rating (-40°C to +85°C) supports outdoor deployment. For direct burial or aerial installations, additional protective sleeving or armored variants are recommended.
Q5: What are the latest industry standards compliance for these components?
A: These pigtails comply with IEC 61754-15 (FC connectors), TIA-604-5 (FOCIS 5), and ISO/IEC 11801-1 Ed 3.0 for OM5 compatibility. They meet GR-326-CORE Issue 4 for reliability and are compatible with ITU-T G.657.A2 bend-insensitive fiber specifications for high-density installations.
