Design Features and Performance

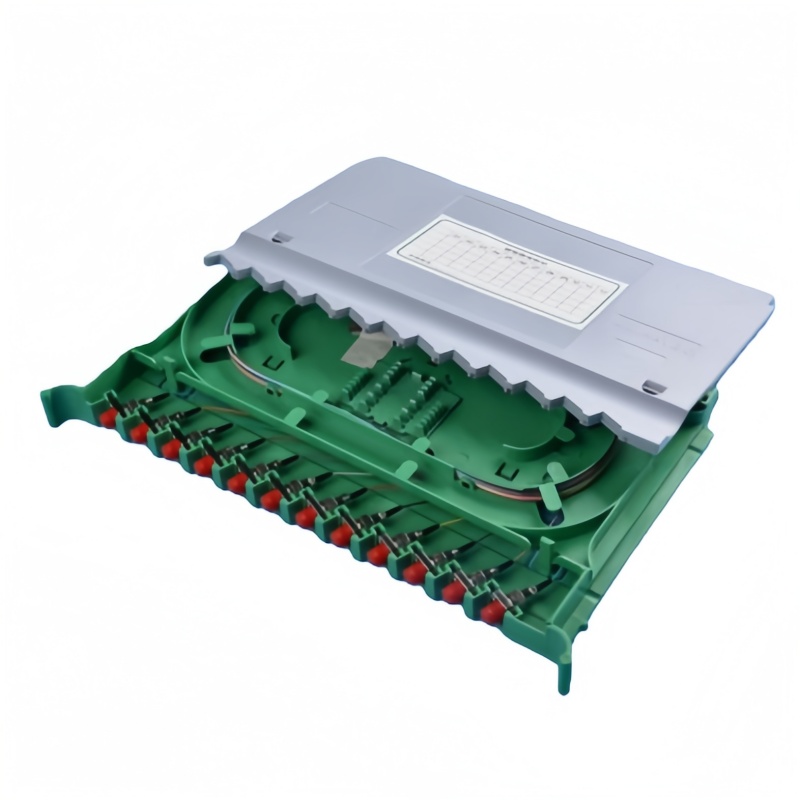

The splice tray is crafted to facilitate the splicing of optical fibers within Optical Distribution Frames (ODF), fiber patch panels, and termination boxes. The “FC/UPC” specification indicates a screw-type connector mechanism with an Ultra Physical Contact (UPC) polish, ensuring high stability and low back reflection. Key features include:
- كفاءة المساحة: The stackable design allows for high-density configurations, maximizing the utilization of space in fiber enclosures.
- Fiber Protection: The internal routing structure guarantees that the fiber bend radius exceeds 30mm, preventing macro-bending losses.
- Durability: Made from high-quality injection-molded plastics, it offers excellent resistance to aging and temperature fluctuations.
المواصفات الفنية To assist engineers and procurement teams, below are the detailed technical parameters based on current industry standards:
| المعلمة | Technical Data |
|---|---|
| Model Name | Fiber Optic Splice Tray FC/UPC-12 core |
| سعة الألياف | 12 Cores (Single fiber) |
| واجهة الموصل | FC/UPC (Screw-on type) |
| المواد | Flame Retardant ABS / PC Alloy |
| فقدان الإدراج | ≤ 0.2 ديسيبل |
| خسارة الإرجاع (UPC) | ≥ 50 ديسيبل |
| Working Temperature | -40 درجة مئوية ~ +85 درجة مئوية |
| Insulation Resistance | ≥ 2×10^4 MΩ / 500V (DC) |
| عمر الخدمة | > 20 Years |
| اللون | RAL 7035 (Light Grey) / White / Black |
مجالات التطبيق This product is versatile and compatible with various optical equipment produced by Fenxi Optoelectronics, including:
- Fiber Optic Distribution Frames (ODF): For central office cabling.
- Fiber Optic Splice Closures: For outdoor aerial or underground protection.
- صناديق إنهاء الألياف: Essential for Fiber to the Home (FTTH) and building (FTTB) networks.
- Telecommunications Operation: Supporting stable long-haul and metro network transmission.
R&D and Quality Commitment At Fenxi Optoelectronics Technology, quality is paramount. Our team, comprised of experienced production and quality management personnel from home and abroad, strictly controls every manufacturing step. From the selection of raw materials to the final inspection of the splice trays, we ensure that every unit meets international optical communication standards. Whether for system integration or large-scale fiber transmission projects, our factory is equipped to handle bulk orders with consistency and precision.
