الوصف
الميزات الرئيسية
-

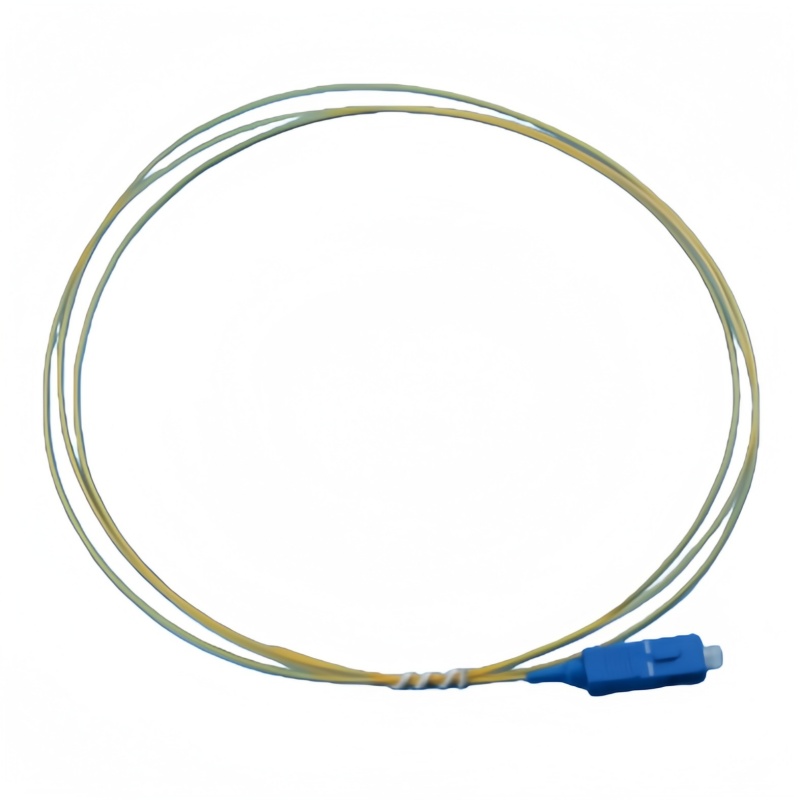

Minimal Footprint: 0.9mm cable diameter allows routing in extremely confined spaces, ideal for optical transceivers, patch panels, and equipment internal wiring.
-
Superior Flexibility: Tight buffer design provides excellent bend performance without compromising mechanical protection, simplifying installation in tight spaces.
-
Precision Connection: UPC polished SC connector ensures low insertion loss (<0.2 dB typical) for reliable digital signal transmission.
-
Batch Consistency: Automated polishing and testing guarantee uniform performance across production lots.
| المعلمة | المواصفات |
|---|---|
| Product Code | SC/UPC-0.9mm-SM |
| الموصل | SC/UPC |
| نوع الألياف | G.652.D Single-Mode |
| قطر الكابل | 0.9 مم |
| فقدان الإدراج | ≤ 0.3 ديسيبل |
| خسارة الإرجاع | ≥ 50 ديسيبل |
| Tensile Load | 5 N (长期) |
| الحد الأدنى لنصف قطر الانحناء | 7.5 mm (安装时) |
| نطاق درجة الحرارة | -20 درجة مئوية إلى +70 درجة مئوية |
SC/APC-0.9mm-SM: Precision Low-Reflection in Miniature
When signal purity meets space constraints, the SC/APC-0.9mm Pigtail provides the answer. Featuring the angled physical contact polish in an ultra-slim form factor, this component is essential for reducing back reflection in dense PON splitters, compact CATV distribution points, and test equipment interfaces where every dB of return loss matters.
Design Advantages
-
Reflection Control: APC polish achieves >60 dB return loss, critical for analog video and PON uplink stability.
-
Space-Optimized: 0.9mm cable enables neat organization in crowded FDHs (Fiber Distribution Hubs) and OLT racks.
-
Visual Identification: Standard green housing provides instant recognition in complex fiber management systems.
-
Reliable Performance: Each unit is tested for both IL and RL to ensure compliance with stringent PON standards.
Specifications Summary
-
Model: SC/APC-0.9mm-SM
-
Fiber: G.657.A1 Bend-Insensitive Single-Mode
-
IL: <0.25 dB
-
RL: >60 dB
-
Cable: 0.9mm LSZH, Green
-
Mating Cycles: ≥500
-
Operating Wavelength: 1260-1650 nm
Q: Why choose 0.9mm for APC applications?
A: In PON MDU (Multi-Dwelling Unit) deployments and compact optical test setups, the slim profile allows more fibers in limited splitter housing space while maintaining critical low-reflection performance for upstream signal integrity.
Q: Can I mix 0.9mm and 2.0mm pigtails in the same panel?
A: Yes, but proper strain relief and routing management are crucial. Use appropriate cable guides and organizers to prevent microbending stress on the thinner 0.9mm fibers where they connect to bulkier cables.
