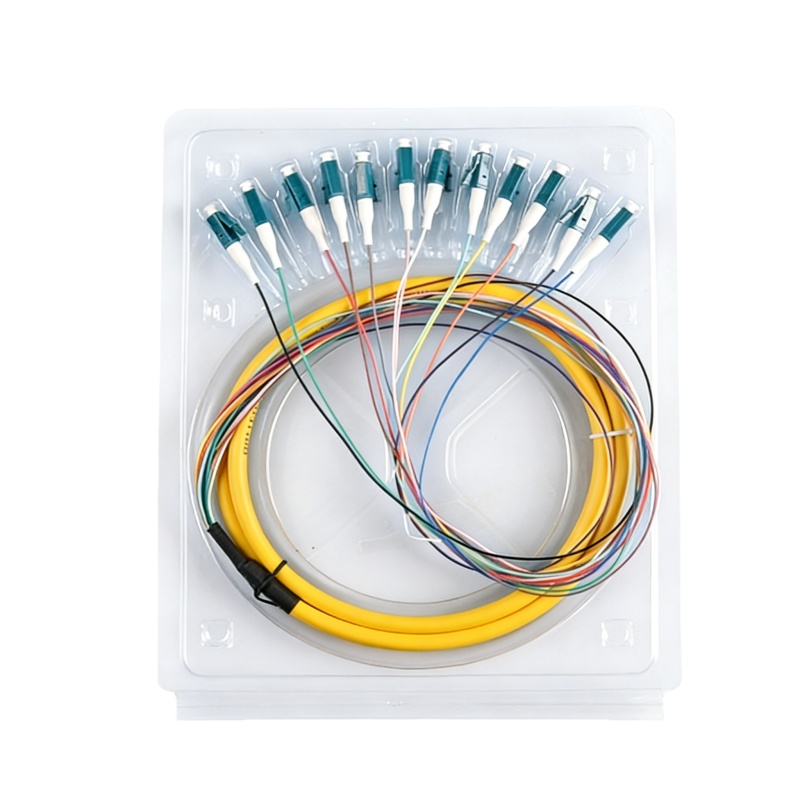

Core Advantages of LC/UPC 12-Core SM Fiber Pigtail
1. Unmatched Repeatability & Stability
Crafted from new high-temperature resistant, environmentally friendly materials, our 12-core fiber pigtail is engineered to resist deformation, breakage, and detachment. The specialty fully automatic standardized production process minimizes manual intervention, ensuring consistent quality across every unit. This stability guarantees uniform performance even in harsh environmental conditions, making it ideal for long-term network deployments.
2. Low Insertion Loss & Mechanical Stability
Featuring a high-quality ferrule, the LC/UPC connector boasts exceptional reliability, concentricity, and precise dimensional accuracy. These attributes directly reduce insertion loss (≤0.3dB) and maintain signal integrity, ensuring minimal signal degradation over time. The stable mechanical design also resists wear from repeated mating, making it suitable for high-traffic network environments.
3. High-Performance Single Mode Fiber Core
At the heart of this pigtail lies an imported high-quality single mode fiber core. Each unit undergoes 100% rigorous testing before delivery, ensuring compliance with industry performance benchmarks. Recognized by network engineers and integrators worldwide, this fiber core delivers superior signal transmission for fiber-to-the-home (FTTH) and data center connectivity, making it the preferred choice for mission-critical applications.
Technische Daten
| Parameter | Einzelheiten |
|---|---|
| Produktname | 12-core fiber pigtail (LC/UPC-12core-SM) |
| Stecker Typ | LC/UPC (compatible with SC/UPC, SC/APC, FC/UPC, FC/APC, LC/APC, ST/UPC) |
| Faser-Typ | Single Mode (SM) |
| Color Coding | SM: Yellow; MM-OM3: Aqua; MM-OM4: Magenta |
| Zugfestigkeit | ≥ 1000N |
| Dauerhaftigkeit | ≥ 1000 mating times |
| Einfügedämpfung | ≤ 0,3dB |
| Rückflussdämpfung | UPC≥30dB; APC≥40dB |
| Bandbreite | ±40nm |
| Betriebswellenlänge | 1310nm-1490nm, 1550nm-850nm |
| Material | LSZH (raucharm und halogenfrei) |
Ideale Anwendungen
The LC/UPC 12-Core Single Mode Fiber Pigtail is engineered for diverse high-demand scenarios:
- Fiber-to-the-Home (FTTH): Enables reliable last-mile connectivity for residential and business users.
- Daten-Zentren: Supports high-density interconnections between servers, switches, and storage systems.
- Enterprise Networks: Facilitates secure, high-speed data transmission for office campuses and multi-site organizations.
- Telecommunication Infrastructure: Backs long-haul and metro network deployments for service providers.
Frequently Asked Questions (FAQ)
Q1: What is the key difference between UPC and APC connectors?
A: UPC (Ultra Physical Contact) connectors feature a polished surface that minimizes signal reflection (return loss ≥30dB), making them ideal for high-speed data networks. APC (Angled Physical Contact) connectors have an 8-degree angled polish, reducing return loss to ≥40dB, which is critical for analog and high-frequency applications like CATV. Our LC/UPC pigtails are optimized for digital data transmission in data centers and FTTH.
Q2: How does the 12-core design benefit my fiber network?
A: The 12-core design consolidates 12 individual fiber strands into a single compact pigtail, reducing cable clutter and simplifying installation in high-density environments like data centers. This design also lowers deployment time and labor costs by enabling multi-fiber connections in a single step.
Q3: What testing protocols ensure the reliability of your fiber pigtails?
A: Every LC/UPC 12-core SM pigtail undergoes 100% factory testing, including insertion loss, return loss, and tensile strength verification. We adhere to IEC 61753-1 and Telcordia GR-326 standards, ensuring compliance with global performance and durability benchmarks.
Q4: Why is LSZH material used in your fiber pigtails?
A: LSZH (Low Smoke Zero Halogen) material emits minimal smoke and toxic fumes when exposed to fire, enhancing safety in enclosed spaces like data centers and office buildings. This makes our pigtails compliant with strict fire safety regulations worldwide, including the EU’s RoHS directive.
Q5: How can I maintain optimal performance of my LC/UPC fiber pigtails?
A: To ensure long-term performance:
- Avoid bending the cable beyond its minimum bend radius (typically ≥30mm for single mode fibers).
- Keep connector ends clean using lint-free wipes and isopropyl alcohol.
- Store pigtails in dust-free environments when not in use.
- Use proper fiber optic tools for mating and demating to prevent ferrule damage.
