Descripción
Product Description

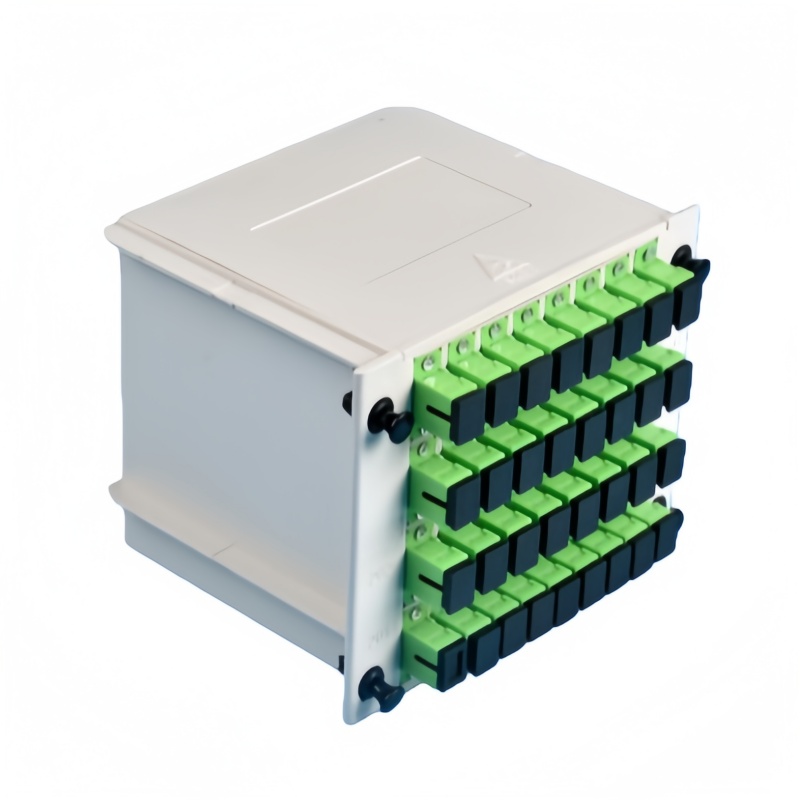

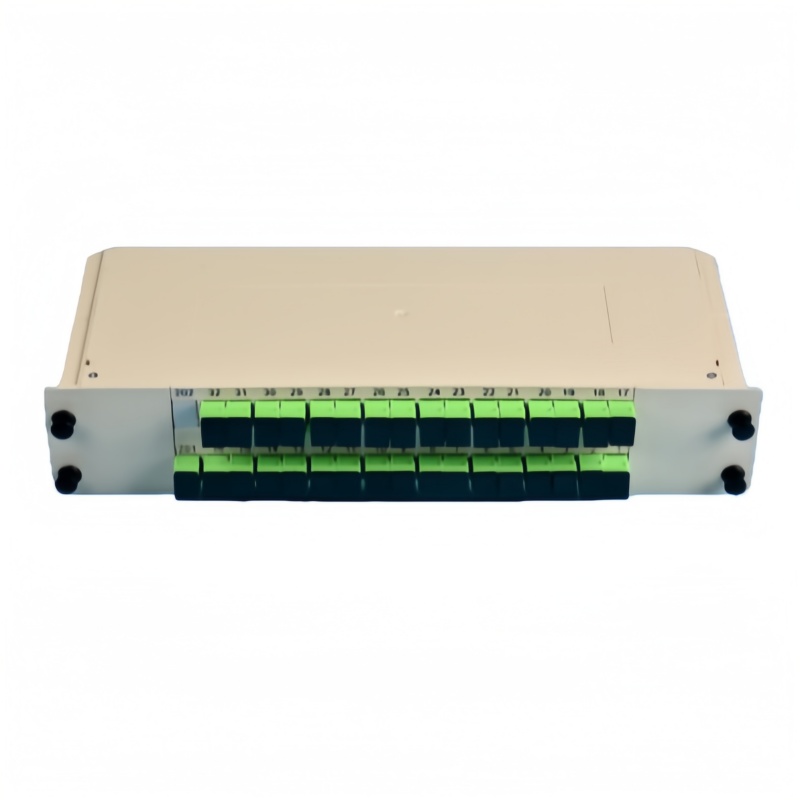

En Divisor óptico SC/APC-1*32 is a carrier‑grade PLC fiber splitter engineered for high‑density optical access networks. Designed to distribute one optical input signal into 32 balanced output channels, it delivers excellent optical uniformity and stable transmission performance. With precision‑polished SC/APC connectors, this splitter effectively reduces back reflection and signal attenuation, making it ideal for large‑scale FTTH and PON deployments.
Parámetros técnicos
| Nombre del producto | Divisor de fibra óptica SC/APC-1*32 |
|---|---|
| Tipo de conector | SC/UPC, SC/APC, FC/UPC, FC/APC, LC/UPC, LC/APC, ST/UPC |
| Color | Amarillo/blanco/color |
| Ancho de banda | ±40 nm |
| Resistencia a la tensión | ≥200 N |
| Longitud de onda | 1310nm-1490nm-1550nm/850nm |
| Durabilidad | ≥1000 veces |
| Material | LSZH |
| Pérdida de inserción | \ |
| Pérdida de retorno | UPC > 50 dB, APC > 60 dB |
Specifications reflect commonly adopted PLC splitter performance benchmarks used in current global FTTH and PON network deployments.
Aplicaciones típicas
- FTTH access networks with high user density
- GPON / EPON / XG‑PON systems
- Telecom central offices and outdoor cabinets
- Cuadros de distribución óptica (ODF)
- Data communication and CATV networks
Fabricación y control de calidad
Each Optical Splitter SC/APC-1*32 is manufactured under strict quality management systems. Optical performance testing, environmental aging tests, and connector end‑face inspections are conducted to ensure long‑term reliability and consistent performance in demanding network environments.
Fenxi Optoelectronics Value
Backed by an experienced R&D team and advanced production capabilities, Fenxi Optoelectronics provides reliable and scalable optical communication solutions. Our PLC splitters are designed to meet the evolving requirements of operators, system integrators, and network builders worldwide.
