Descripción
Designed for Large-Scale Network Expansion
As fiber networks continue to grow in scale, efficient signal distribution becomes increasingly important. The 2×16 splitter architecture allows operators to reduce fiber resource consumption while simplifying network topology.
Main design highlights include:
- High Split Ratio Capability
Supports up to 16 user endpoints per distribution unit, ideal for dense residential or commercial areas. - SC/APC Connector Interface
Angled physical contact polishing minimizes return loss and improves signal stability, especially in GPON and EPON systems. - Space-Saving Structure
Suitable for installation in ODF fiber optic distribution frames, fiber optic termination boxes, and splice closures.
Optical and Mechanical Specifications

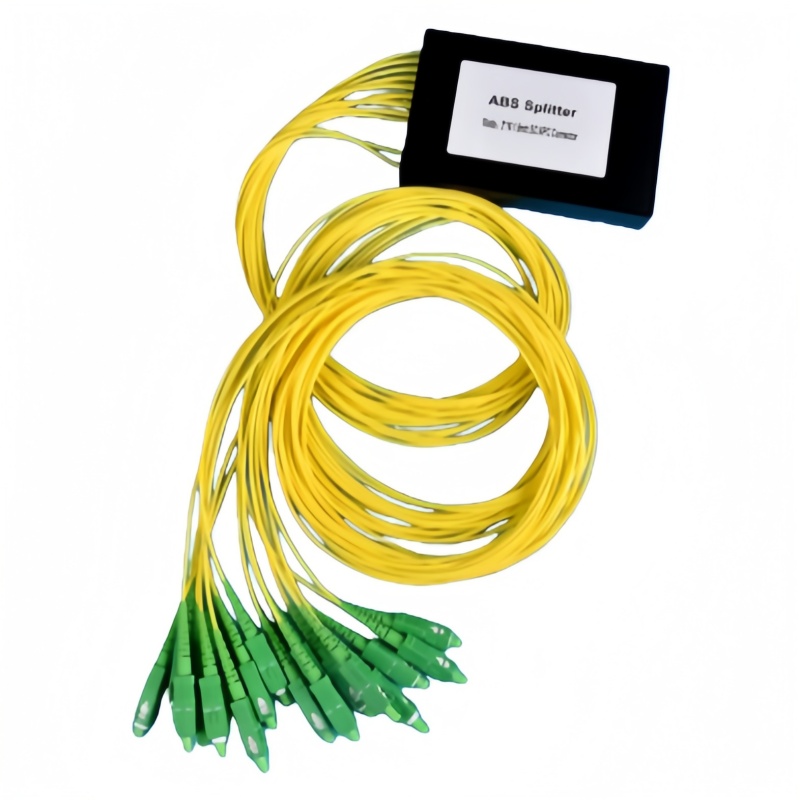

Manufactured using advanced PLC technology, the Optical Splitter SC/APC-2*16 meets current industry standards for passive optical components used by telecom operators.
| Nombre del producto | Fiber Optic Splitter SC/APC-2*16 |
|---|---|
| Tipo de conector | SC/UPC, SC/APC, FC/UPC, FC/APC, LC/UPC, LC/APC, ST/UPC |
| Color | Amarillo/blanco/color |
| Ancho de banda | ±40 nm |
| Resistencia a la tensión | ≥200 N |
| Longitud de onda | 1310nm-1490nm-1550nm/850nm |
| Durabilidad | ≥1000 veces |
| Material | LSZH |
| Pérdida de inserción | \ |
| Pérdida de retorno | UPC > 50 dB, APC > 60 dB |
Performance values are aligned with commonly accepted telecom-grade PLC splitter specifications.
Typical Deployment Scenarios
En Optical Splitter SC/APC-2*16 is optimized for environments where network density and scalability are key considerations, including:
- FTTH access networks in high-rise buildings
- Telecommunication operator distribution nodes
- Fiber transmission and aggregation points
- Proyectos de integración de sistemas requiring high port counts
When used together with Fenxi’s fiber optic patch cords, 12-core fiber optic cassettes, and ODF distribution frames, it helps create a complete and efficient passive optical network solution.
Fenxi Manufacturing and Quality Assurance
Fenxi Optoelectronics Technology combines international manufacturing standards with experienced quality management teams. Each optical splitter is tested for optical performance, environmental stability, and mechanical reliability before delivery, ensuring consistent quality and dependable operation across the entire network lifecycle.
