Répartiteur fibre optique SC/APC-1*4 | Répartiteur 1×4 PLC pour FTTH & PON

Description

Fenxi Optoelectronics Technology’s Séparateur optique SC/APC-1*4 is a 1×4 PLC splitter designed for high‑density FTTH, FTTx and PON access networks. With low insertion loss, excellent uniformity and SC/APC angled connectors, it provides reliable optical power distribution from central offices to end users in telecom, CATV and enterprise applications.

Product Description

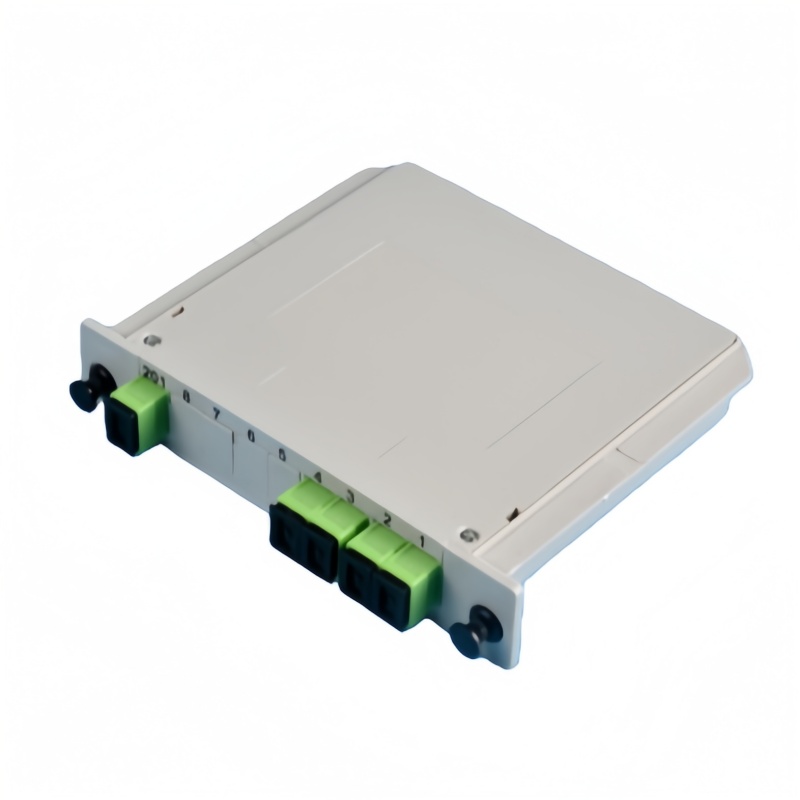

Le Séparateur optique SC/APC-1*4 takes one input fiber and evenly distributes the signal to four outputs, making it ideal for last‑mile fiber deployment and network expansion. Using planar lightwave circuit (PLC) technology on a silica substrate, it offers better wavelength uniformity and long‑term stability than traditional FBT splitters, especially across the 1260–1650 nm band commonly used in GPON, EPON and XG(S)-PON systems.

This splitter is available in multiple packaging formats—bare fiber, mini steel tube, ABS module, tray, and rack‑mount ODF—to meet different project requirements and installation environments, such as outdoor splice closures, wall‑mount termination boxes and optical distribution frames.

Principales caractéristiques et avantages

• 1×4 PLC structure for balanced optical power splitting
• SC/APC connectors with 8° angled polish for low back reflection
• Wide operating wavelength (1260–1650 nm) compatible with GPON/EPON/XG(S)-PON
• Low insertion loss & high uniformity, improving PON budget and service stability
• High return loss and directivity, reducing crosstalk and reflection noise
• Telcordia‑grade reliability (GR‑1209/1221 design reference) for outdoor and indoor use
• Compact, high‑density design suitable for FTTH distribution points and multi‑dwelling units

Technical Specifications (Typical 1×4 PLC, SC/APC)

Data below reflect mainstream, up‑to‑date industry ranges for single‑mode 1×4 PLC splitters with SC/APC connectors, used by global telecom operators and system integrators.

Note: Exact values can be tuned according to project specs while staying within typical industry tolerances.

Applications typiques

• FTTH / FTTB / FTTO Networks
  • Split one feeder fiber into four drop fibers for residential, SME and MDU scenarios
  • Deployed in floor boxes, corridor boxes, wall‑mount termination boxes and outdoor closures
• PON Central Office & Distribution Cabinets
  • Used in OLT‑side or cabinet‑side split levels in GPON/EPON and XG(S)-PON networks
  • Compatible with 12‑core cassettes, ODF distribution frames and modular splitter trays
• Passive Optical LAN (POL) & Campus Networks
  • Enables multi‑point distribution without active electronics at split points
  • Reduces cabling complexity and optimizes OPEX in large buildings and campuses
• CATV & Video Surveillance
  • Stable signal splitting for HD/IPTV, cable TV and long‑distance monitoring systems

Installation & Integration Advantages

• Plug‑and‑play SC/APC interface
  • Fast field deployment without fusion splicing on every port
  • Simple maintenance, easy replacement and re‑configuration
• Flexible packaging for different environments
  • Bare fiber or mini steel tube for splice closures and tight‑space applications
  • ABS module or tray versions for termination boxes and indoor cabinets
  • ODF/rack‑mount modules for central office or data‑center environments
• High compatibility with Fenxi product ecosystem
  • Works seamlessly with Fenxi fiber optic patch cords, pigtails, adapters, termination boxes, splice closures and ODF frames
  • Simplifies procurement and ensures quality consistency from a single supplier
