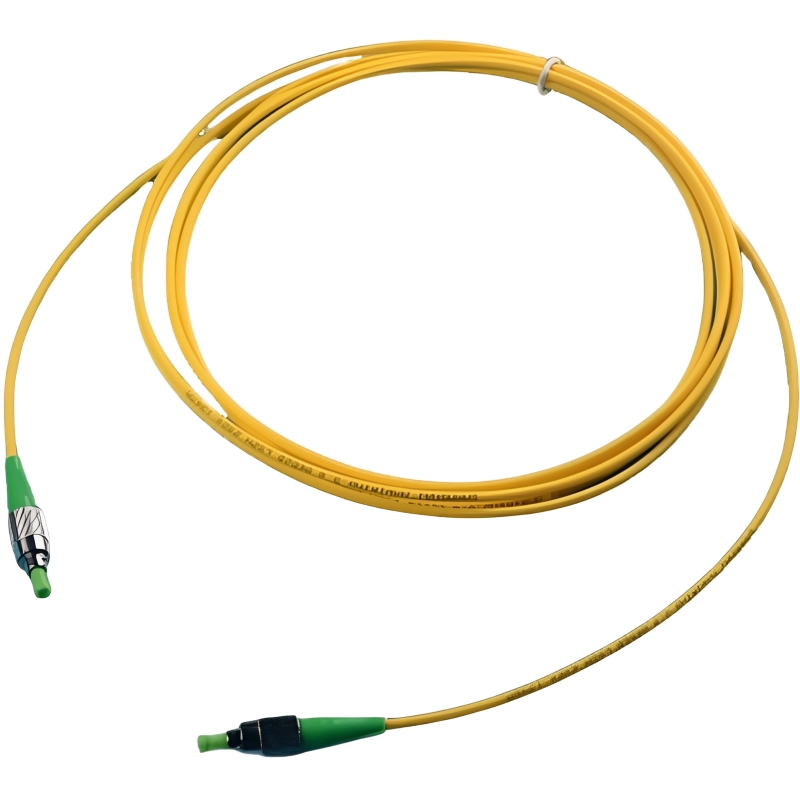

Why Choose the FC/APC-FC/APC-SM-SX Model?
This specific cable is engineered to solve two major networking headaches: vibration-induced signal loss and back-reflection. The threaded metallic housing of the FC connector provides a secure mechanical lock, while the 8-degree angled polish of the APC ferrule pushes reflected light into the cladding, maintaining a return loss of over 60dB.
Core Technical Specifications
To help you verify compatibility with your existing infrastructure, here are the standardized metrics for this professional-grade jumper:
| Specification | Details | Benefit |
| Model | FC/APC-FC/APC-SM-SX | Industry Standard Identification |
| Fiber Type | Single-mode (G.652.D/G.657.A1) | Optimized for 1310/1550nm |
| Insertion Loss | $\leq 0.3 \text{ dB}$ | High-efficiency light transmission |
| Return Loss | $\geq 60 \text{ dB}$ | Prevents laser damage/signal noise |
| Jacket Material | LSZH (Yellow) | Fire-safe, low-smoke, zero halogen |
| Durability | $> 1000$ matings | Long-term mechanical reliability |
Key Performance Benefits
-
Precision Ferrule Alignment: Each cable features a high-quality ceramic ferrule, ensuring the 9-micron core aligns perfectly every time.
-
Environmental Resilience: With high-temperature resistance and a non-deforming jacket, these cables are built for the rigorous conditions of modern data centers.
-
Minimal Manual Intervention: Our automated production process reduces human error, resulting in consistent stability across large-scale deployments.
-
Standardized Compliance: Fully compliant with Telcordia GR-326-CORE standards for optical connectors.
Expert Q&A for Network Engineers
Q1: Why is the FC connector still popular despite the rise of LC/SC?
The threaded, metallic design of the FC connector is virtually immune to accidental pull-outs or vibration. It remains the “gold standard” for test equipment, laboratory settings, and industrial environments where physical stability is paramount.
Q2: What happens if I connect this to a Blue (UPC) FC adapter?
Connecting an APC (Green) to a UPC (Blue) will result in a massive air gap. This causes high insertion loss and can physically scratch the fiber end-faces. Always ensure your adapters and connectors match by color.
Q3: Is this cable suitable for 40G/100G networks?
Yes. While the connector is “Simplex,” the Single-mode fiber core (OS2) easily supports high-bandwidth protocols over long distances, provided your transceivers are configured for single-strand operation.
