Description
Key Features and Design
- High-Density Capacity: Supports up to 24 fiber fusion splices, ideal for space-constrained environments like data centers and street cabinets.
- LC/UPC Optimization: Structure and routing paths are optimized for LC pigtails and adapters, ensuring a safe bending radius (>30mm).
- Robust Material: Manufactured using high-strength, flame-retardant ABS materials, providing durability against environmental stress and aging.
- Stackable Design: Features a modular structure that allows multiple trays to be stacked securely, facilitating easy network expansion and maintenance.
- Easy Identification: Includes clear labeling areas for fiber numbering, simplifying the troubleshooting process for maintenance personnel.
Technical Specifications
The following specifications are based on international standards (IEC/ISO) for optical fiber accessories, ensuring compatibility with global network infrastructure.
| Parameter | Specification |
|---|---|

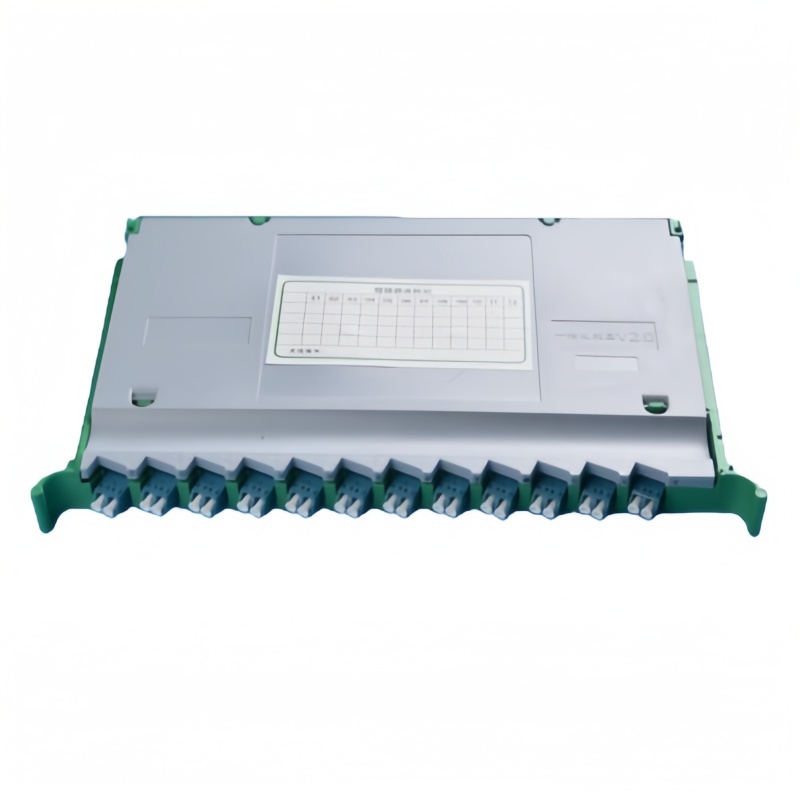

| Product Name | Fiber Optic Splice Tray |
| Model Type | LC/UPC-24 Core |
| Max Capacity | 24 Fibers (Single fusion) |
| Material | High-Impact ABS / PC (Flame Retardant UL94-V0) |
| Adapter Interface | LC Duplex (12 ports) or LC Quad (6 ports) |
| Bending Radius | ≥ 30mm |
| Splice Sleeve Length | Compatible with 40mm / 60mm sleeves |
| Operating Temperature | -40°C to +85°C |
| Color | White / Grey / Black (Customizable) |
| Life Expectancy | ≥ 20 Years |
Applications
Drawing on Fenxi Optoelectronics’ experience in telecom operations and system integration, this product is widely used in:
- Optical Distribution Frames (ODF): Central office and server room cable management.
- Fiber Termination Boxes: FTTH indoor and outdoor wall mounts.
- Fiber Optic Splice Closures: Underground and aerial joint protection.
- Data Center Cabling: High-density LC patching zones.
Why Choose Fenxi Optoelectronics
Changzhou Fenxi Optoelectronics Technology Co., Ltd. combines senior R&D expertise with experienced production management to deliver high-quality optical products. We adhere to a philosophy of “high-quality products and preferential prices.” Our splice trays undergo rigorous quality checks to ensure they meet the demands of global service providers. We welcome cooperation with system integrators and distributors worldwide to create brilliant prospects together.
