Description
Key Features and Advantages
- 12-Core Capacity: Supports up to 12 single fibers, suitable for medium-density fiber distribution.
- SC/UPC Compatibility: Designed for SC/UPC connectors, ensuring precise alignment and low return loss.

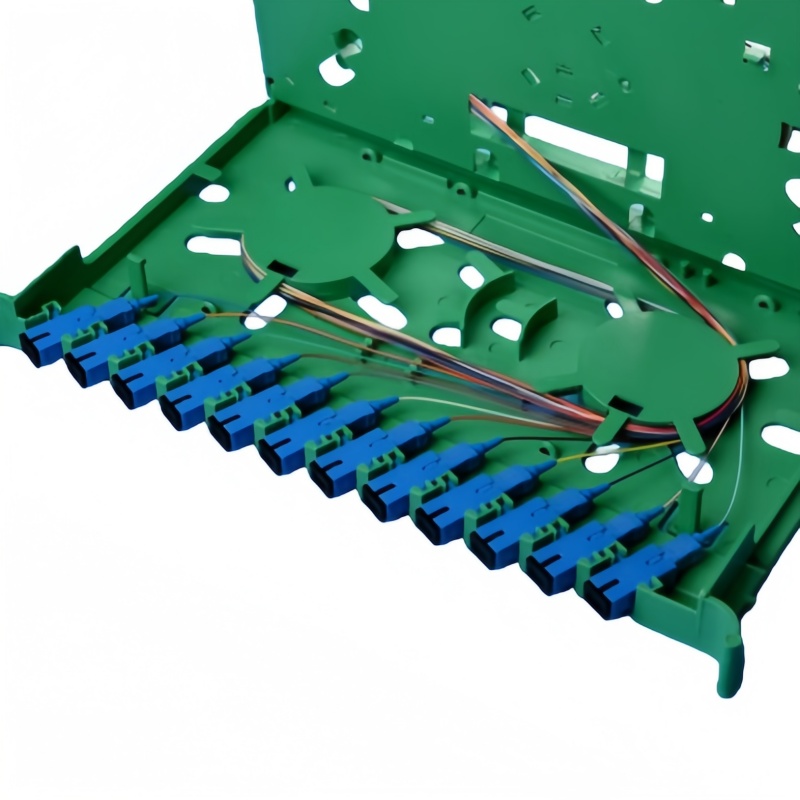

- Efficient Fiber Management: Integrated routing channels keep fibers neatly organized and protected.
- High Mechanical Strength: Resistant to vibration, impact, and environmental stress.
- Easy Installation & Maintenance: Modular structure allows quick access for splicing, inspection, and upgrades.
- Wide Application: Compatible with ODFs, fiber optic distribution boxes, and splice closures.
Technical Specifications
| Parameter | Specification |
|---|---|

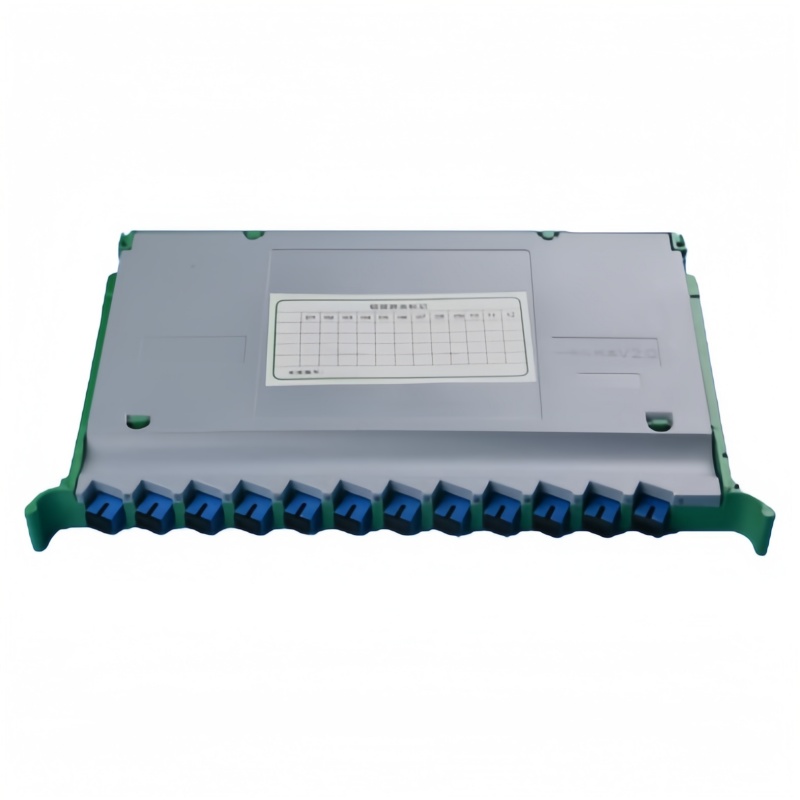

| Product Name | Fiber Optic Splice Tray SC/UPC-12core |
| Fiber Capacity | 12 cores |
| Connector Type | SC/UPC |
| Applicable Fiber | Single-mode / Multi-mode |
| Insertion Loss | ≤ 0.3 dB (typical industry standard, 2025) |
| Return Loss | ≥ 50 dB (SC/UPC standard) |
| Material | Flame-retardant ABS or PP |
| Operating Temperature | -40°C to +75°C |
| Installation Method | Rack-mounted / Box-mounted |
Specifications are based on current mainstream optical communication standards and typical deployment requirements.
Application Scenarios
The Fiber Optic Splice Tray SC/UPC-12core is widely used in:
- Fiber to the Home (FTTH) access networks
- Telecom central offices and base stations
- Data centers and enterprise networks
- Optical distribution frames (ODF) and fiber termination boxes
Its stable performance makes it suitable for both indoor and controlled outdoor environments.
Quality and Reliability
Each splice tray undergoes strict quality control during production, including material inspection and structural testing. The design complies with current optical communication industry requirements, ensuring long-term reliability in high-speed fiber networks.
