Description
Robust Design and High-Density Capacity

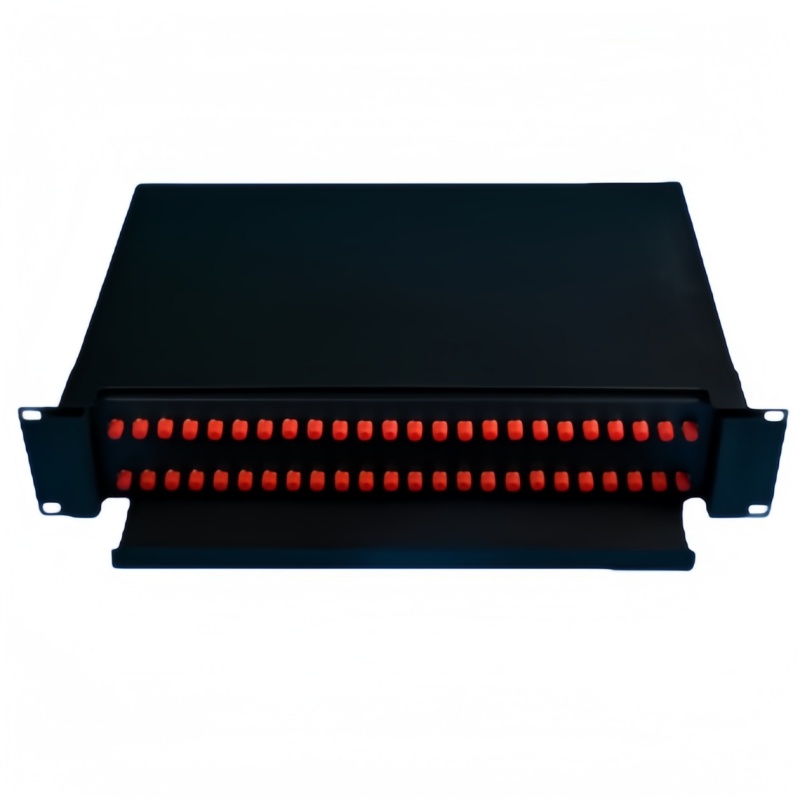

This 2U termination box is crafted to maximize space efficiency while ensuring durability. The enclosure is typically manufactured from high-quality cold-rolled steel with an electrostatic spraying surface, offering excellent corrosion resistance and physical protection.
- Standard 19-Inch Structure: Perfectly compatible with standard optical distribution frames and network cabinets, facilitating easy installation and maintenance.
- FC Adapter Compatibility: The front panel is loaded with FC (Ferrule Connector) adapter ports. The screw-on mechanism of FC connectors ensures highly stable connections, making them ideal for environments where vibration might be a concern.
- 48-Core Management: The unit supports up to 48 fiber connections, equipped with integrated splice trays that guide and protect fibers, ensuring the bend radius exceeds 30mm to minimize signal loss.
- User-Friendly Operation: Features a drawer-type or slide-out design (depending on specific configuration), allowing technicians easy access to the interior for splicing and patching without removing the entire box from the rack.
Technical Specifications
To assist network engineers and procurement specialists in their decision-making, we provide real-time technical parameters based on industry standards for high-quality rack-mount units.
| Feature | Specification |
|---|---|
| Product Model | Fiber Termination Box FC-2U-48core |
| Mounting Type | 19-Inch Rack Mount (Standard) |
| Height Unit | 2U (Approx. 88.9mm height) |
| Max Capacity | 48 Cores |
| Adapter Type | FC (Simplex) |
| Material | Cold Rolled Steel (SPCC) |
| Material Thickness | 1.0mm – 1.2mm (Standard) |
| Surface Finish | Electrostatic Powder Coating |
| Operating Temperature | -25°C to +55°C |
| Insertion Loss | ≤ 0.3dB |
| Return Loss | PC≥45dB, UPC≥50dB, APC≥60dB |
| Color | Black (RAL 9005) or Grey (RAL 7035) |
Application Scenarios
The Fiber Termination Box FC-2U-48core is a versatile solution suitable for various high-bandwidth network environments:
- Telecommunications Subscriber Loops: Organizing fiber connections in central offices.
- Fiber to the Home (FTTH): Acting as a distribution point in the aggregation layer.
- Data Centers: Managing high-density cabling systems for servers and storage.
- LAN/WAN Systems: Ideal for enterprise network rooms requiring organized cable management.
Quality Assurance from Fenxi Optoelectronics
At Fenxi Optoelectronics Technology, quality is our priority. Backed by senior production management personnel and a rigorous quality control system, every Fiber Termination Box FC-2U-48core undergoes strict testing before shipment. From the durability of the steel casing to the precision of the adapter ports, we ensure our products deliver stable performance for your critical network infrastructure.
