Description
🔍 Key Features & Benefits
-
Compact LC Connector for high-density installations — ideal for modern data centers and patch panels.
-
Low Insertion Loss & High Return Loss ensure efficient signal transmission with minimal reflection.
-
High-Quality OM3 Multimode Fiber supports high bandwidth and is optimized for 10 Gbps and above applications.
-
Stable Construction & Repeatability thanks to automatic production and strict quality controls.
-
User-Friendly Design with aqua OM3 jacket for easy identification and organized routing.

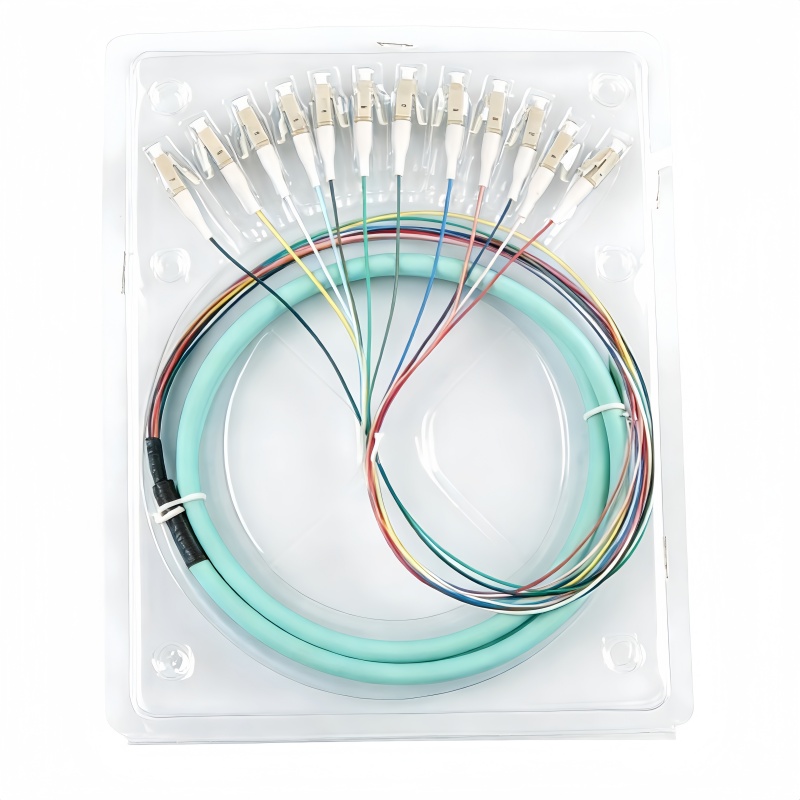

📊 LC/UPC-12core-OM3 Technical Specification
| Parameter | Specification |
|---|---|
| Product Name | LC/UPC 12-core Fiber Pigtail |
| Fiber Type | Multimode OM3 (50/125 µm) |
| Connector Type | LC/UPC |
| Insertion Loss | ≤ 0.2 – 0.3 dB |
| Return Loss | ≥ 35 dB |
| Durability | ≥ 1000 mating cycles |
| Operating Wavelength | 850 nm & 1300 nm |
| Jacket Material | LSZH |
| Cable Diameter | 0.9 mm tight buffered |
| Operating Temp | −40 °C to +80 °C |
