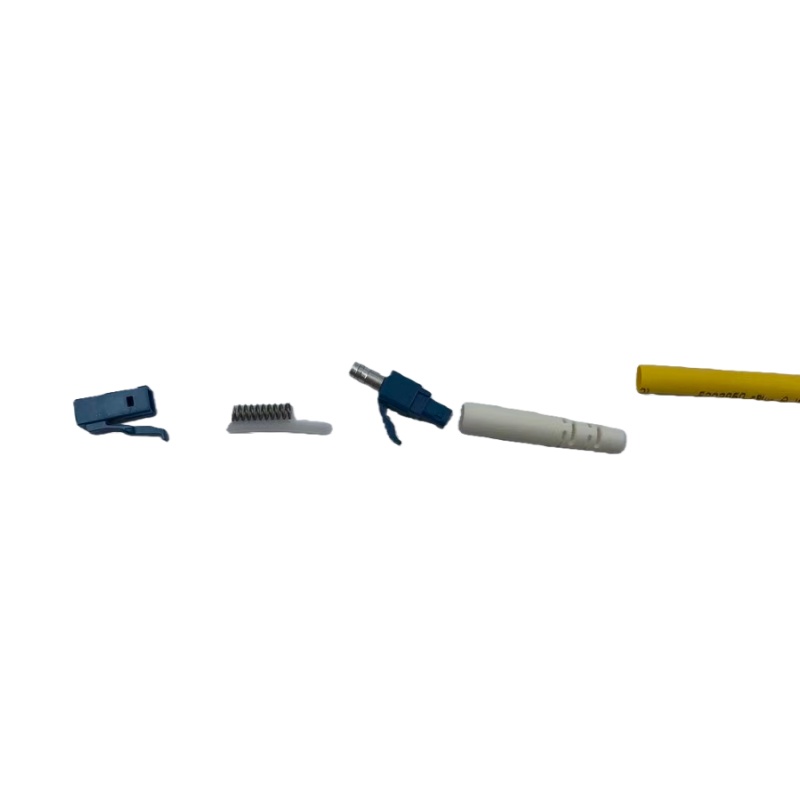

LC UPC 2.0mm Simplex Singlemode

LC UPC 2.0mm Simplex Single-Mode Connector

Designed for patch cords and distribution networks

The LC UPC 2.0mm Simplex Single-Mode connector is built for ready-to-use patch cords and access network fiber links, where mechanical strength and optical stability are equally important.

Unlike 0.9mm pigtail connectors that are spliced inside equipment, the 2.0mm jacketed LC connector is designed to be handled, plugged and unplugged repeatedly in ODF panels, wall outlets, switches and ONTs.

With its UPC polished end face, it delivers low insertion loss and clean signal transmission for telecom, FTTH and data network applications.

Description
Reviews (0)

Description

Why 2.0mm is the standard for LC patch cords

Cable Diameter	Typical Role
0.9mm	Pigtails, internal fiber
2.0mm	LC patch cords & jumpers
3.0mm	Outdoor & rugged cords

The 2.0mm cable offers the best balance between flexibility and tensile strength, making it ideal for indoor fiber routing.

Optical performance

Parameter	Typical Value
Fiber Type	Single-mode 9/125 µm
Polish Type	UPC
Insertion Loss	≤ 0.30 dB
Return Loss	≥ 50 dB
Wavelengths	1310 / 1550 nm
Repeatability	≤ 0.1 dB
Mating Durability	≥ 1000 cycles

This performance supports FTTH, telecom backbone and data transmission links.

Mechanical structure

Feature	Specification
Connector Type	LC Simplex
Cable Diameter	2.0mm
Ferrule	1.25mm zirconia ceramic
Boot	Standard strain-relief boot
Latching System	LC push-pull
Operating Temperature	–40°C to +75°C
Tensile Strength	≥ 100 N

The reinforced boot and jacket protect the fiber from bending and pulling during daily operation.

Typical applications

This LC UPC 2.0mm connector is widely used in:

LC-LC and LC-SC patch cords
FTTH indoor fiber links
Optical distribution frames (ODF)
Network switches and routers
Data center single-mode connections
Test and measurement jumpers
