Description
Performance snapshot
| Item | Value |
|---|---|
| Fiber | 50/125 µm Multimode (OM2 / OM3) |

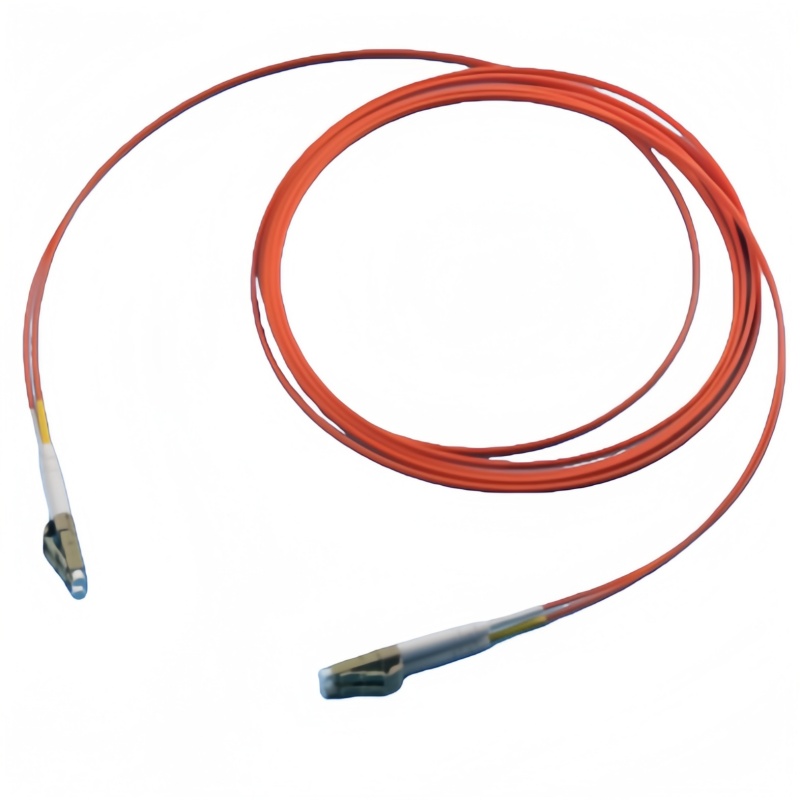

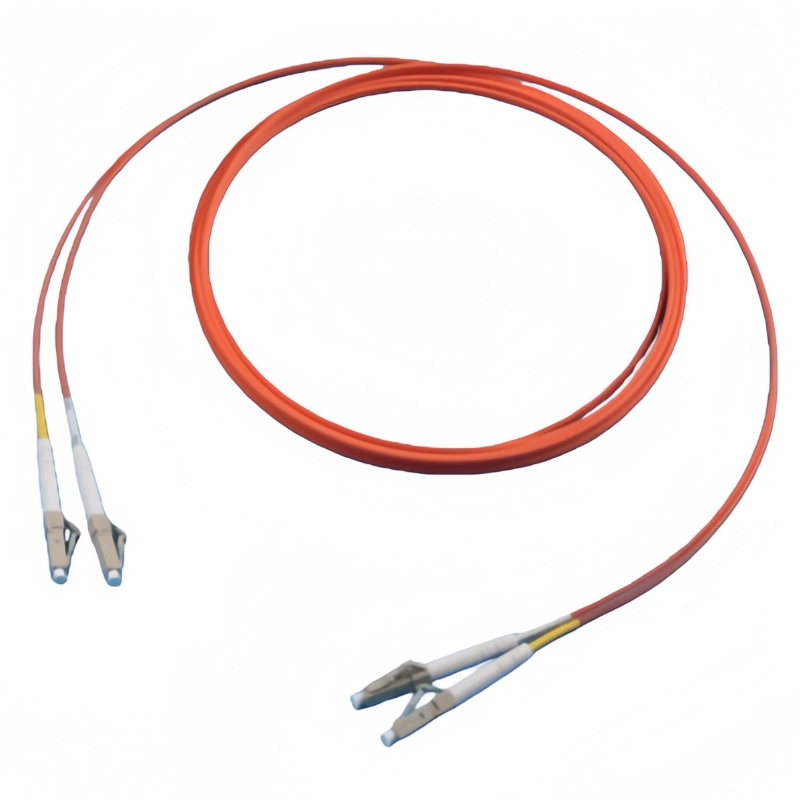

| Connectors | LC/UPC ↔ LC/UPC |
| Insertion loss | ≤ 0.30 dB |
| Return loss | ≥ 30 dB |
| Wavelength | 850 nm / 1300 nm |
| 10G Reach | up to 300 m (OM3) |
Typical use: switch-to-switch patching, server NICs, high-density fiber trays.
SC/UPC–FC/UPC-50/125-DX
Industrial-grade multimode jumper
The SC/UPC–FC/UPC-50/125-DX is made for environments where connector stability matters as much as signal quality. The SC side allows quick push-pull connections in patch panels, while the FC side locks into instruments or ODFs using a threaded metal ferrule.
This hybrid design is common in telecom rooms, laboratories, and industrial control networks where equipment vibration or repeated reconnection is expected.
Why this cable exists
-
FC prevents micro-movement during measurement
-
SC makes patch-panel routing fast
-
50/125 multimode keeps costs low for short links
Optical data
| Parameter | Spec |
|---|---|
| Fiber | 50/125 µm MM |
| IL | ≤0.30 dB |
| RL | ≥30 dB |
| Data rates | 1G, 10G, 40G |
| Wavelength | 850 / 1300 nm |
