Description
Key Features and Benefits
- 96‑Core High‑Density Capacity
Enables efficient fiber management in limited rack space, ideal for central offices and data centers. - LC/APC Adapter Design
Angled physical contact improves return loss performance and enhances network stability. - Modular Internal Structure
Compatible with 12‑core fiber optic cassettes for flexible configuration and easy expansion. - Professional Cable Management
Optimized fiber routing and bend‑radius protection reduce installation and maintenance risks. - Robust Mechanical Design
Manufactured using high‑quality metal materials with anti‑corrosion coating to ensure durability in long‑term operation.
Technical Specifications
| Item | Specification |
|---|---|

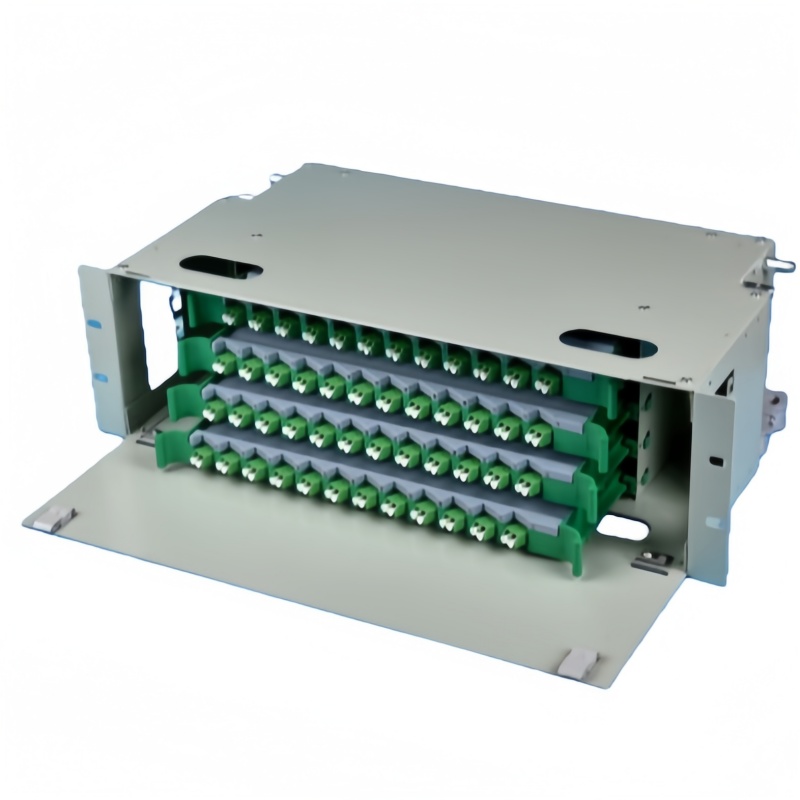

| Product Name | ODF Fiber Optic Distribution Frame LC/APC-96core |
| Fiber Capacity | 96 cores |
| Adapter Type | LC/APC |
| Fiber Type | Single‑mode OS2 (9/125 μm) |
| Mounting Standard | 19‑inch rack mount |
| Typical Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 60 dB |
| Operating Temperature | -20°C to +60°C |
| Compliance | IEC, Telcordia GR‑326 (industry‑recognized standards) |
Application Scenarios
The ODF Fiber Optic Distribution Frame LC/APC-96core is widely used in:
- Telecommunications central offices
- FTTH and FTTx access networks
- Optical transmission backbone networks
- Data centers and enterprise network rooms
- System integration and fiber distribution projects
Why Choose Fenxi Optoelectronics
Fenxi Optoelectronics Technology combines experienced R&D expertise with strict quality management to deliver reliable optical communication products. The ODF Fiber Optic Distribution Frame LC/APC-96core reflects the company’s commitment to high standards, stable performance, and practical design for real‑world network deployment.
Summary
The ODF Fiber Optic Distribution Frame LC/APC-96core offers a dependable, scalable, and space‑efficient solution for modern optical networks. It is an ideal choice for projects requiring high fiber density, low signal loss, and professional cable organization.
