Descrição

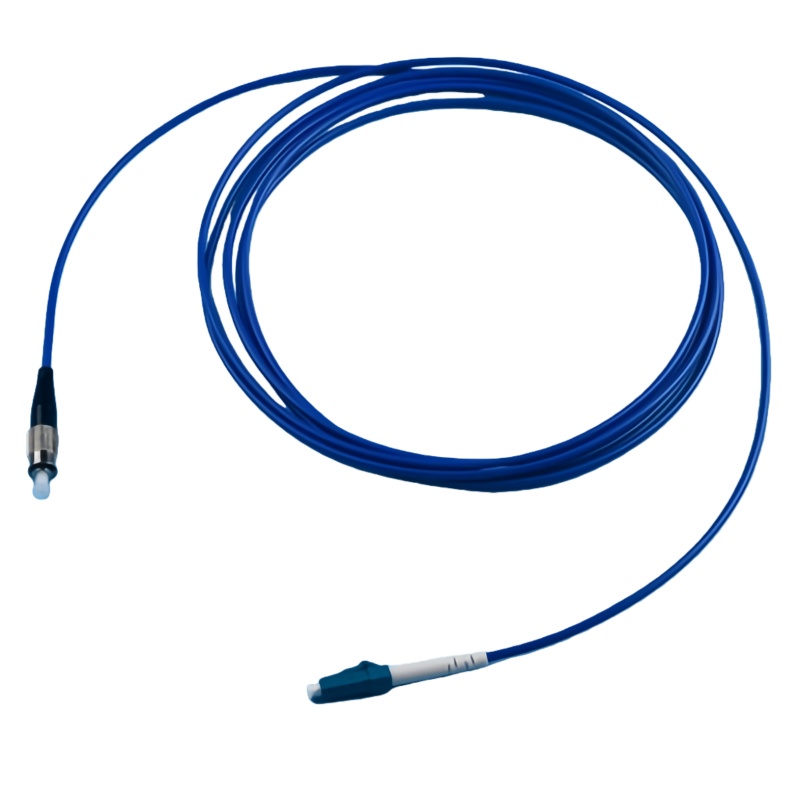

Why FC to LC with Armoured Design?
O FC connector provides screw-lock stability, preventing micro-movement that can cause optical fluctuation—critical for test equipment, telecom racks, and carrier links.
O LC connector supports aplicação de patches de alta densidade and direct connection to SFP+, QSFP, and modern transceivers.
O tubo blindado protects the fiber from:
-
Esmagamento e tração
-
Mordidas de roedores
-
Sharp bending
-
Harsh installation environments
This makes the FC–LC armoured patch cord perfect for outdoor routing, cable trays, and industrial enclosures.
Especificações técnicas
| Parâmetro | FC/UPC–LC/UPC Armoured |
|---|---|
| Tipo de fibra | Modo único OS2 (9/125 μm) |
| Conector A | FC / UPC |
| Conector B | LC / UPC |
| Estrutura de cabos | Armadura de metal (tubo de aço ou alumínio) |
| Comprimento de onda operacional | 1310 nm / 1550 nm |
| Perda de inserção | ≤ 0,30 dB |
| Perda de retorno | ≥ 50 dB |
| Resistência à tração | Significantly higher than standard cords |
| Raio mínimo de curvatura | ≥ 10× diâmetro do cabo |
| Jaqueta | LSZH / PE / PVC |
| Padrões | IEC, TIA-568, RoHS, REACH |
Built for Wholesale, OEM & Project Supply
Esse modelo é amplamente utilizado por:
-
Telecom distributors
-
Integradores de sistemas
-
Empreiteiras de FTTH e FTTx
-
Industrial network builders
-
Exporters and sourcing companies
Nós apoiamos:
-
Pedidos em massa
-
Custom lengths & labeling
-
Fabricação OEM / ODM
-
Low MOQ for trial orders
-
Fast global shipping
Como um fiber patch cord manufacturer and supplier, we help our agents, wholesalers, and integrator partners reduce cost while ensuring carrier-grade performance.
Why Single-Mode OS2?
OS2 fiber supports:
-
Long-distance transmission
-
10G, 25G, 40G, 100G and beyond
-
1310 nm & 1550 nm wavelengths
-
FTTH, PON, metro, and backbone networks
It’s the standard choice for telecom-grade armoured patch cords.
Perguntas e respostas profissionais
Q1: Is this suitable for outdoor telecom cabinets?
Sim. estrutura blindada protege contra mechanical stress, rodents, and harsh environments.
Q2: Can this be supplied for OEM or distributor branding?
Sim. Nós fornecemos OEM/ODM, private label, and bulk wholesale production.
Q3: What kind of projects typically use FC–LC armoured cables?
They are commonly used in FTTx, base stations, industrial fiber systems, and carrier networks.
Q4: What is the MOQ for bulk sourcing?
MOQ is flexible, supporting both sample orders and large-volume procurement.
