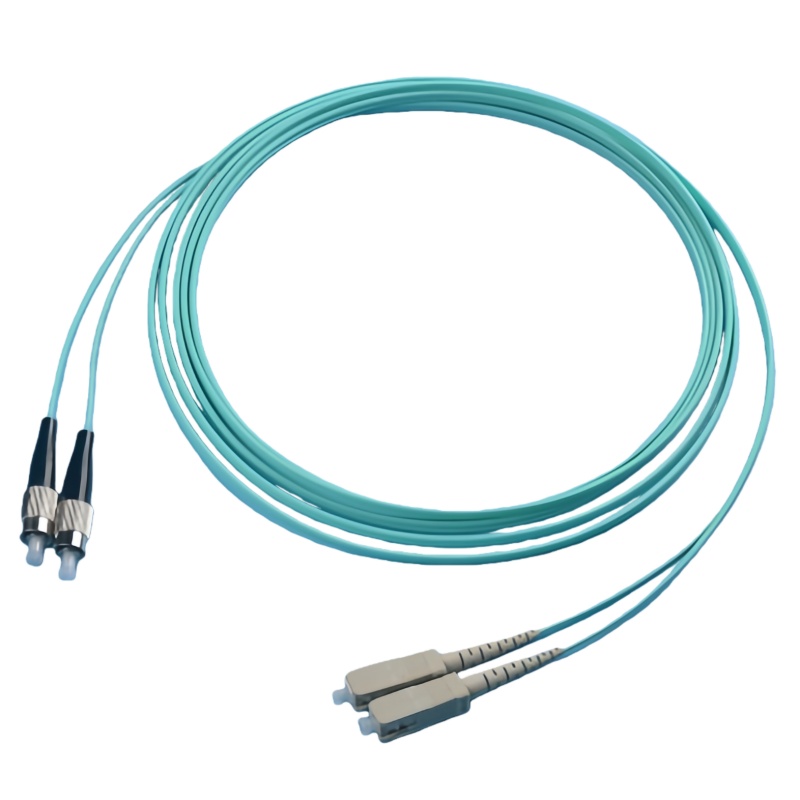

Cabo de conexão de fibra óptica multimodo FC/UPC-SC/UPC-OM3-DX

Descrição

Why FC to SC Makes Sense

FC connectors are favored in measurement equipment and carrier networks because their screw-on metal body prevents micro-movement that can cause optical instability.
SC connectors, by contrast, are standard in ODFs, patch panels, and switches for their snap-in reliability and easy handling.

This hybrid design lets you connect precision-grade FC devices directly to SC-based network infrastructure without adapters or signal degradation.

Optical & Mechanical Specifications

Where It’s Commonly Deployed

• Escritórios centrais de telecomunicações

• OTDRs, power meters, and test benches

• Conexões cruzadas de data center

• Campus fiber backbones

• Industrial and broadcast networks

OM3’s high bandwidth ensures clean signal transmission even when multiple patch points are involved.

Engineered for Optical Consistency

Each FC–SC OM3 jumper is assembled with ceramic ferrules and UPC-polished end faces, then 100% tested for insertion loss, reflectance, and geometry. This ensures low back reflection, high coupling efficiency, and long service life.

O LSZH jacket option meets modern fire-safety and low-smoke standards required in commercial buildings and data centers.

Perguntas e respostas profissionais

Q1: Why use FC connectors in modern networks?
Os conectores FC oferecem exceptional stability and are still widely used in test equipment and carrier-grade systems.

Q2: Can OM3 support 100G Ethernet?
Yes. OM3 supports 100G up to 100 meters using 850 nm multimode transceivers.

Q3: Is this cable suitable for patch panels?
Com certeza. Os SC end plugs directly into standard ODFs and network panels.

Q4: Does UPC polishing matter?
Yes. UPC polishing reduces reflection and maintains return loss ≥ 30 dB, improving link reliability.
