Descrição
Optimized for High-Speed Multimode Networks

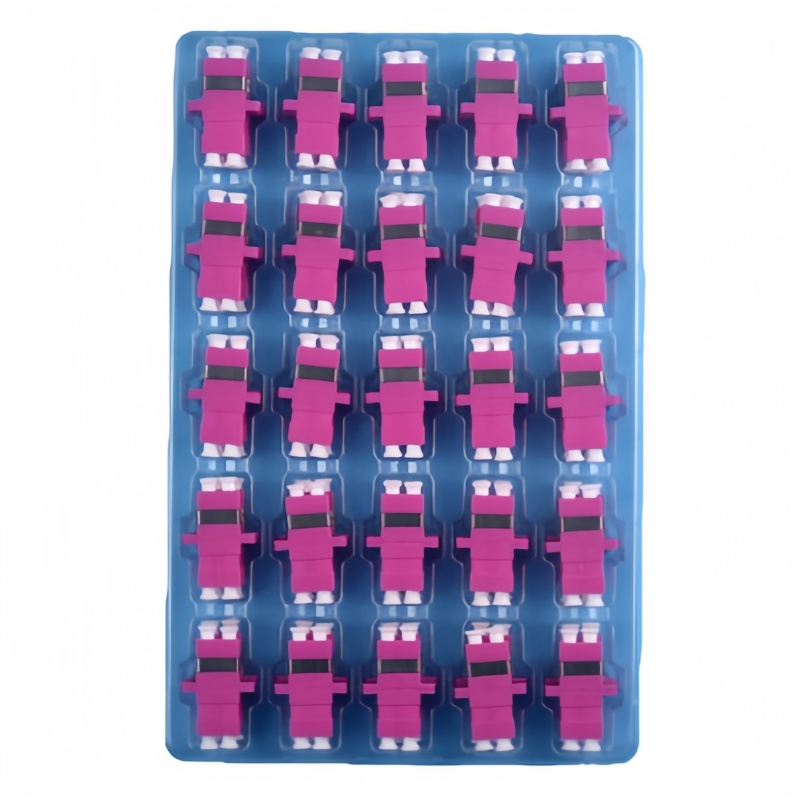

Unlike standard single-mode adapters, the LC/UPC-DX-OM4 adapter is tailored for multimode fibers that utilize Vertical Cavity Surface Emitting Lasers (VCSELs). It features a precise alignment sleeve—typically made of high-grade Zirconia ceramic or Phosphor Bronze—to ensure minimal signal loss during mating. The “DX” (Duplex) configuration allows for two fiber connections in a compact footprint, effectively doubling the density compared to simplex adapters. The housing is color-coded in the industry-standard Violet (Erika Violet) or Aqua, making it instantly recognizable for technicians managing complex ODF fiber distribution frames and fiber termination boxes.
Especificações técnicas
To assist network architects and procurement specialists, Fenxi Optoelectronics provides transparent and real-time technical data. The following specifications highlight the adapter’s capability to maintain signal integrity under various operational conditions:
| Parâmetro | Especificação |
|---|---|
| Nome do produto | LC/UPC Duplex OM4 Adapter |
| Categoria de fibra | Multimode OM4 (50/125µm Laser Optimized) |
| Perda de inserção (IL) | 0.20 dB (Typical) |
| Cor do compartimento | Violet / Erika Violet (Standard for OM4) |
| Material da manga | Zirconia Ceramic / Phosphor Bronze |
| Material do compartimento | UL94-V0 Flame Retardant Plastic |
| Interchangeability | 0.20 dB |
| Temperatura operacional | -40°C a +85°C |
| Conformidade | TIA/EIA-568-C.3, IEC 61754, RoHS |
Strict Quality Control and Application
Quality is the cornerstone of Fenxi Optoelectronics. Our experienced production management personnel oversee a comprehensive testing process to ensure every LC/UPC-DX-OM4 adapter offers superior mechanical stability and durability (over 1000 mating cycles). These adapters are widely deployed in:
- Centros de dados: Connecting servers and switches in SAN/LAN environments.
- Local Area Networks (LAN): Backbone cabling for enterprise buildings.
- Fiber Patch Panels: High-density integration in 19-inch racks.
Whether for upgrading existing infrastructure or deploying new fiber transmission systems, Fenxi Optoelectronics delivers the precision required for high-bandwidth connectivity.
