Why SC–SC Still Matters
While LC dominates transceiver ports, SC connectors remain widely used in patch panels, ODFs, and backbone distribution frames. SC connectors offer a larger ferrule for robust coupling e um positive latch mechanism that makes them ideal for high-traffic fiber cabinets.
Pairing SC with OM3 fiber gives you a strong optical backbone that is both easy to manage and future-ready.
Optical & Physical Characteristics
| Recurso | SC/UPC–SC/UPC-OM3-DX |
|---|---|
| Tipo de fibra | OM3 Multimode 50/125 μm |
| Configuração | Duplex (DX) |
| Tipo de conector | SC / UPC para SC / UPC |
| Comprimento de onda operacional | 850 nm / 1300 nm |
| Bandwidth @ 850 nm | 2000 MHz·km |
| Perda de inserção | ≤ 0,30 dB |
| Perda de retorno | ≥ 30 dB |
| 10G Ethernet | Up to 300 m |
| 40G / 100G | Up to 100 m |
| Jaqueta | LSZH ou PVC |
| Conformidade | IEC, TIA-568, RoHS, REACH |
Ideal Use Scenarios
-
Patch panel to patch panel links
-
Telecom and data center distribution frames
-
Enterprise LAN backbones
-
Optical cabinets and fiber rooms
-
High-speed network cross-connects
OM3’s low attenuation and high modal bandwidth keep signals clean even when multiple patch points are involved.
Built for Optical Accuracy

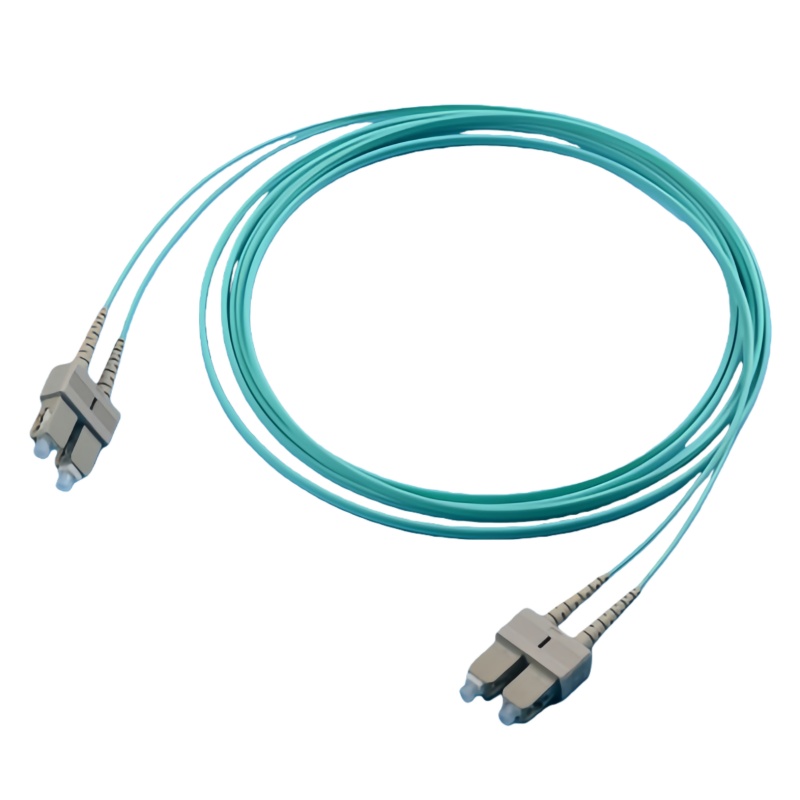

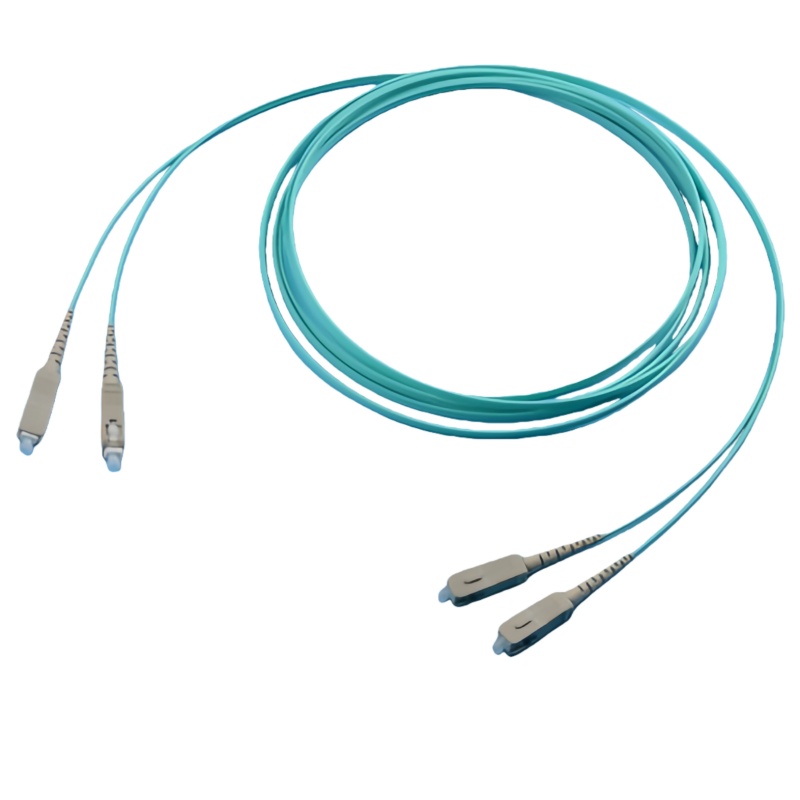

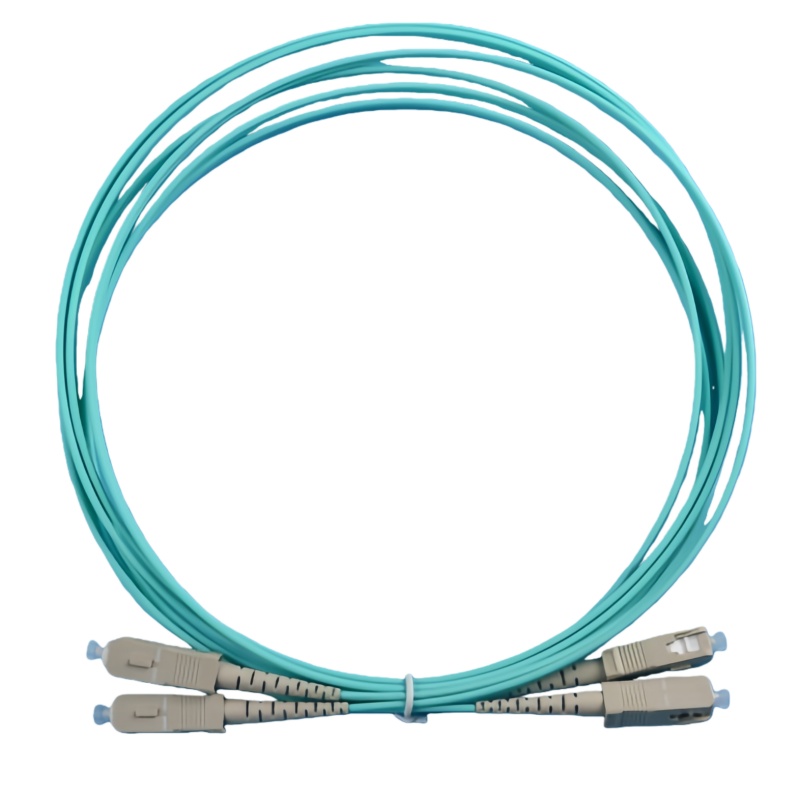

Each SC–SC OM3 jumper is assembled with high-precision ceramic ferrules and UPC-polished end faces, then inspected using interferometry and insertion-loss testing. This ensures minimal back reflection, consistent coupling, and long-term reliability.
O LSZH jacket option also meets modern fire-safety and low-smoke standards, making it suitable for dense data centers and office buildings.
Perguntas e respostas profissionais
Q1: Is SC–SC still suitable for modern networks?
Yes. SC connectors are still widely used in ODFs, patch panels, and backbone links in data centers and telecom rooms.
Q2: Can OM3 handle 40G and 100G Ethernet?
Yes. OM3 supports 40G and 100G up to 100 meters using 850 nm multimode transceivers.
Q3: What benefit does UPC polishing provide?
UPC reduces back reflection and keeps return loss above 30 dB, improving link stability.
Q4: Is this cable backward compatible with older multimode systems?
Yes. OM3 works with OM2 and OM1 equipment, while providing much higher bandwidth for upgrades.
