Açıklama

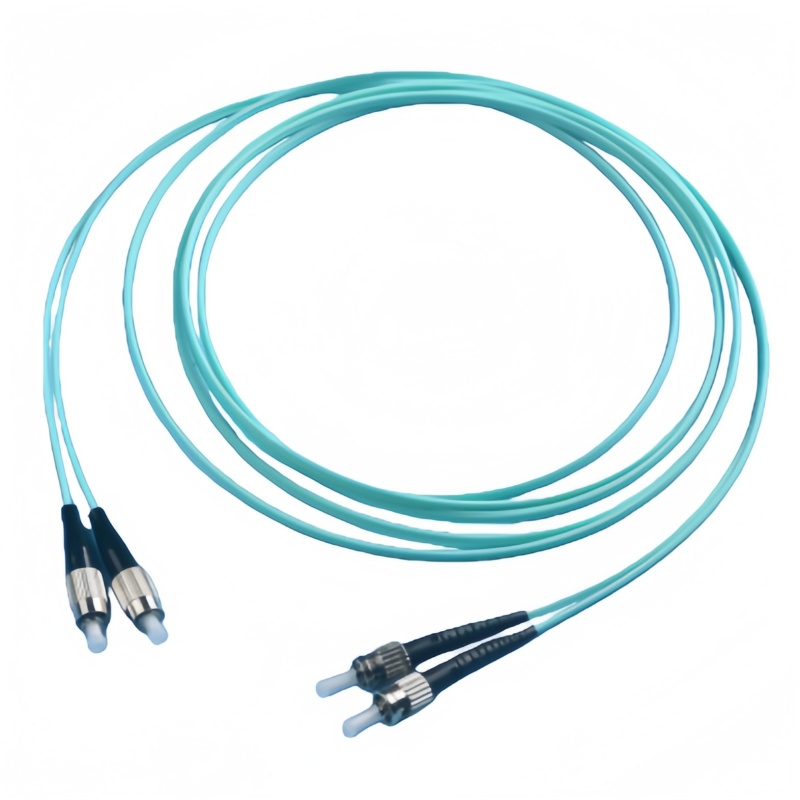

Why FC-to-ST on OM3 Fiber?
FC connectors provide threaded, vibration-resistant locking, making them ideal for measurement equipment and critical links.
ST connectors offer quick bayonet coupling, allowing fast installation in yama panelleri ve duvar prizleri.
Combining these two on OM3 fiber gives you industrial-grade stability with data-center-grade bandwidth.
Teknik Özellikler
| Parametre | FC/UPC–ST/UPC-OM3-DX |
|---|---|
| Elyaf Tipi | OM3 Çok Modlu 50/125 μm |
| Konfigürasyon | Dubleks (DX) |
| Konektör A | FC / UPC |
| Konektör B | ST / UPC |
| Çalışma Dalga Boyu | 850 nm / 1300 nm |
| Ekleme Kaybı | ≤ 0,30 dB |
| Geri Dönüş Kaybı | ≥ 30 dB |
| 10G Ethernet Reach | 300 m'ye kadar |
| 40G / 100G Reach | 100 m'ye kadar |
| Kablo Ceketi | LSZH veya PVC |
| Çalışma Sıcaklığı | -10 °C ila +70 °C |
| Standartlar | IEC, TIA-568, RoHS, REACH |
Gerçek Dünya Performansı
OM3 fiber supports 2000 MHz·km bandwidth at 850 nm, which enables:
-
10G Ethernet up to 300 meters
-
100 metreye kadar 40G ve 100G
This makes the FC–ST OM3 jumper suitable for:
-
High-speed industrial Ethernet
-
Optical test and measurement systems
-
Telecom and metro edge networks
-
Data center cross-connects
-
Automation and control systems
Manufactured for Signal Integrity
Each cable is assembled using precision ceramic ferrules, UPC polishing, and automated interferometer inspection. Both fiber channels are 100% tested for insertion loss and return loss, ensuring stable transmission even in high-vibration or high-temperature environments.
Bu LSZH ceket seçeneği meets modern fire-safety standards for data centers and commercial buildings.
Profesyonel Soru-Cevap
Q1: How is OM3 different from 62.5/125 fiber?
OM3 has çok daha yüksek bant genişliği and supports 10G–100G, while 62.5/125 is limited to 1G.
Q2: Why use FC connectors in high-speed links?
FC’s threaded metal coupling prevents micro-movement that can cause signal fluctuations in sensitive optical systems.
Q3: Is this cable suitable for data centers?
Evet. OM3 şunları destekler 10G, 40G, and 100G short-reach links commonly used in data centers and cloud infrastructure.
