Why This Hybrid Configuration is a Life-Saver
-
Solves Polish Mismatches: You can’t plug an APC connector into a UPC port without massive signal loss. This cable does the “conversion” internally, allowing for a seamless transition.
-
High-Density LC Footprint: Both ends utilize the Small Form Factor (SFF) 1.25mm ferrule, saving massive amounts of space in crowded racks.
-
OS2 Single Mode Performance: Built with premium G.652.D or G.657.A1 fiber, ensuring it can handle 10G, 25G, and even 100G data rates over long distances.
Technical Performance Profile
Because this cable joins two different polishing geometries, factory precision is everything. Here is how it measures up:
| Parametre | Connector A (LC/APC) | Connector B (LC/UPC) | The Advantage |

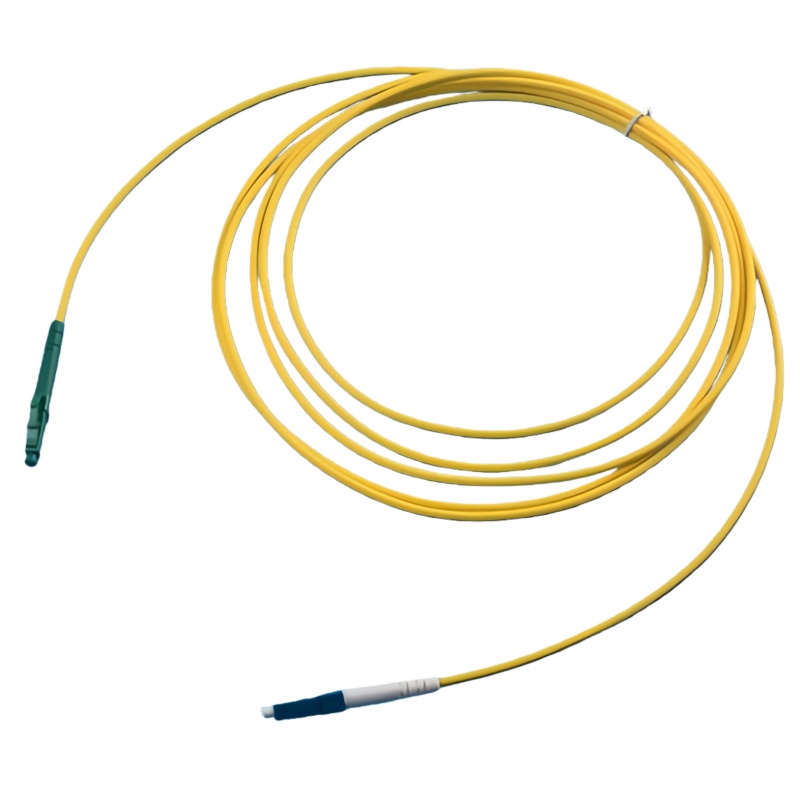

| Color Code | Green | Blue | Easy visual identification |
| End Face Polish | 8° Angled | Ultra-Physical Contact | Bridges different equipment standards |
| Geri Dönüş Kaybı | $\geq 60 \text{ dB}$ | $\geq 50 \text{ dB}$ | Superior protection for the laser source |
| Ekleme Kaybı | $\leq 0,3 \text{ dB}$ | $\leq 0,3 \text{ dB}$ | Negligible power drop |
| Elyaf Tipi | Single Mode (9/125μm) | Single Mode (9/125μm) | Consistent signal speed |
| Ceket | 2.0mm LSZH | 2.0mm LSZH | Fire-safe and extremely flexible |
Strategic Use Cases
1. Connecting Transceivers to ODFs
Many modern high-power transceivers require an APC connection to protect the internal laser from back-reflection. However, many enterprise-grade patch panels are still UPC. This cable is the “missing link” for that connection.
2. Testing and Measurement
Technicians often use this jumper to connect APC-based OTDRs (Optical Time-Domain Reflectometers) to UPC-based networks for testing and troubleshooting without needing bulky adapters.
3. GPON & XGS-PON Deployments
As PON networks evolve, mixed environments are common. Having a reliable LC/APC-LC/UPC jumper ensures you can connect new-gen ONTs to older distribution frames.
Expert Q&A: Field FAQ
Q: Can I flip the cable and use it in either direction?
A: Technically, yes—the fiber doesn’t care which way the light goes. However, you must ensure the Green end always goes into a Green port and the Blue end into a Blue port. Color-matching is the golden rule of fiber optics.
Q: Why does the LC/APC end have a higher Return Loss?
A: The 8-degree angle on the APC ferrule reflects light into the fiber cladding rather than back toward the source. This is why it hits $\geq 60\text{dB}$, compared to the $\geq 50\text{dB}$ of the flat UPC end.
Q: Is “Simplex” (SX) enough for my 10G link?
A: Absolutely. If you are using BiDi (Bi-directional) SFPs, you only need one fiber strand to send and receive. This “Simplex” cable is the leanest way to get the job done.
Q: What happens if I accidentally use an APC-APC cable instead of this hybrid one?
A: If you plug an APC (Green) connector into a UPC (Blue) port, you will experience an “Air Gap.” This will cause high insertion loss (often $>4\text{dB}$) and can cause your network link to fail or drop packets constantly.
