Açıklama
Key Advantages
-
OM5 Wideband Multimode Fiber
Supports SWDM (Short-Wavelength Division Multiplexing), enabling multiple wavelengths on a single fiber and significantly increasing total link capacity compared with OM3 and OM4. -
8-Core & 12-Core Options
Available in 8-fiber or 12-fiber configurations to match QSFP, QSFP-DD, and parallel-optic transceiver requirements. -
High-Density MPO Interface
Reduces cable congestion, improves airflow, and maximizes rack and tray utilization. -
Low-Loss, High-Precision Termination
Factory-polished MPO connectors ensure low insertion loss and stable, high-speed optical performance. -
Backward Compatible
Fully compatible with OM4 and OM3 systems at 850 nm, while providing future-ready wideband capability.
Teknik Özellikler
| Parametre | MPO-MPO-OM5-8/12Core |
|---|---|
| Elyaf Tipi | OM5 Wideband Multimode (50/125 µm) |
| Çekirdek Sayısı | 8 or 12 fibers |
| Konektör Tipi | MPO / MTP to MPO / MTP |
| Çalışma Dalga Boyları | 850–953 nm (SWDM ready) |
| Ekleme Kaybı | ≤ 0.35 dB (standard), ≤ 0.20 dB (low-loss optional) |
| Geri Dönüş Kaybı | ≥ 30 dB |
| Jacket Type | LSZH veya PVC |
| Kablo Çapı | ~3.0 mm |
| Çalışma Sıcaklığı | -10 °C ila +70 °C |
| Uyumluluk | IEC, TIA, RoHS, REACH |
Tipik Uygulamalar
-
100G / 200G / 400G Data Center Networks
-
MPO Backbone and Cross-Connect Links
-
AI, Cloud, and High-Performance Computing Clusters
-
SWDM Multimode Optical Systems
-
High-Density Parallel-Optic Transceiver Connections

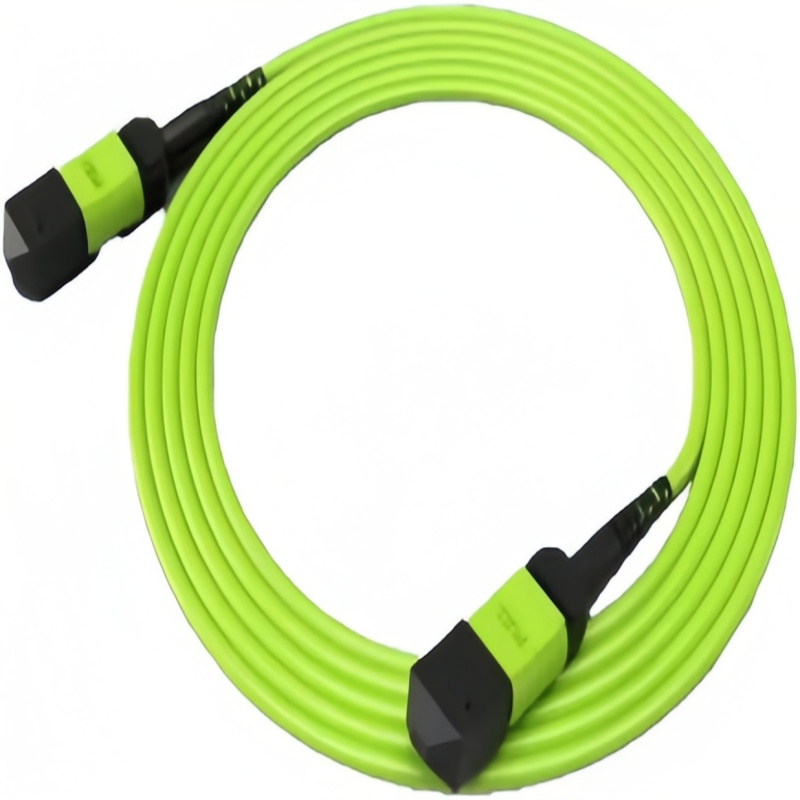

Why Choose MPO-MPO-OM5-8/12Core?
Unlike conventional OM3 or OM4 cables that rely on a single wavelength, OM5 wideband fiber allows multiple wavelengths to run simultaneously over the same fiber. This enables higher data rates without increasing fiber count, reducing cabling complexity and future upgrade costs.
Bu MPO-MPO-OM5-8/12Core patch cord is the ideal choice for organizations building scalable, high-density, and future-ready fiber infrastructures.
Profesyonel Soru-Cevap
Q1: What is the difference between 8-core and 12-core MPO cables?
8-core cables are optimized for many 40G/100G and breakout applications, while 12-core cables provide full MPO capacity and greater flexibility for backbone and cross-connect systems.
Q2: Can OM5 cables be used with OM4 transceivers?
Yes. OM5 is fully backward compatible with OM4 and OM3 at 850 nm, so it works with standard multimode optics.
Q3: What is SWDM and why is it important?
SWDM (Short-Wavelength Division Multiplexing) transmits multiple wavelengths over a single multimode fiber, increasing total bandwidth without installing more fibers.
Q4: Is MPO-MPO-OM5 suitable for 400G networks?
Yes. OM5 is designed to support multi-wavelength multimode 400G and future high-speed optical links, making it ideal for next-generation data centers.
