Açıklama
Teknik Performans Matrisi
Every unit is manufactured under a rigorous quality control process to ensure compliance with the following technical benchmarks:
| Parametre | Profesyonel Özellikler | Mühendislik Avantajı |

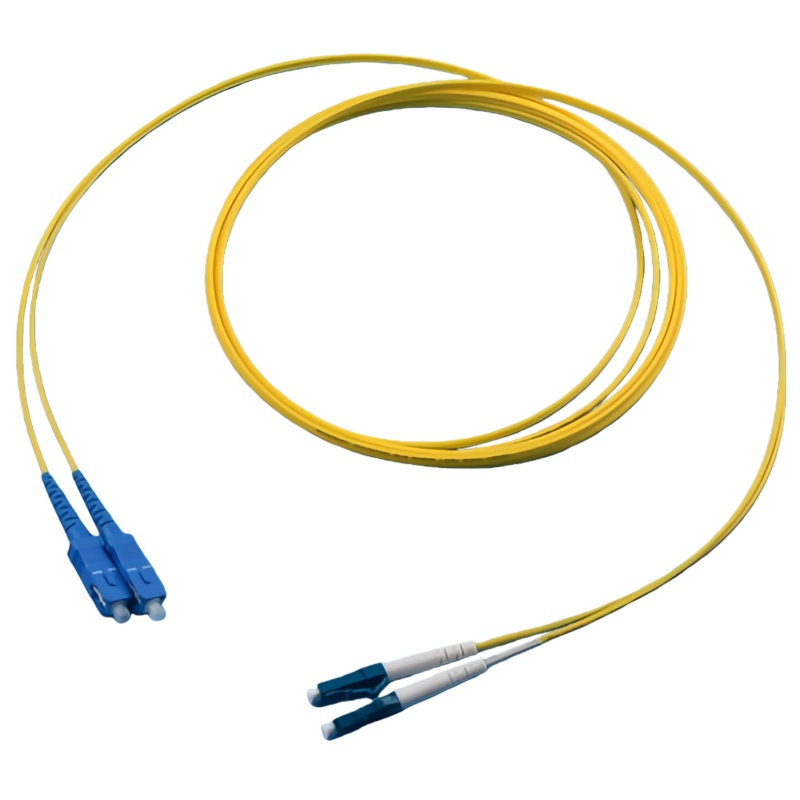

| Konektör Tipi | SC/UPC to LC/UPC | Hybrid SFF-to-Standard interface |
| Elyaf Kategorisi | Tek Modlu Çift Yönlü (SM/DX) | Dual-fiber bidirectional data path |
| Ekleme Kaybı | $< 0,3 \text{ dB}$ | Toplam bağlantı gücü bütçesini optimize eder |
| Geri Dönüş Kaybı | $\geq 50 \text{ dB}$ (UPC) | Maintains superior digital signal purity |
| Dalga boyu | 1310nm / 1490nm / 1550nm | Evrensel OS2 tek mod uyumluluğu |
| Bant Genişliği | $\pm 40\text{nm}$ | Spektral kaymalar boyunca istikrarlı performans |
| Gerilim Dayanımı | $\geq 200 \text{ N}$ | Ruggedized for high-stress installation |
| Dayanıklılık | $\geq 1000$ zamanlar | Yüksek hassasiyetli seramik yüksük uzun ömürlü |
| Ceket Malzemesi | LSZH (Sarı) | Fire-safe, Low Smoke Zero Halogen |
Strategic Advantages for System Deployment
1. Hybrid Interface Versatility
This jumper bridges the gap between the robust SC connector—favored for its stable push-pull mechanism in terminal equipment—and the Küçük Form Faktörü (SFF) LC connector, which is essential for maximizing port density in modern high-speed switches and routers.
2. Full-Duplex Connectivity
Bu Dubleks (DX) architecture provides two dedicated fiber strands, enabling simultaneous two-way communication. This is critical for enterprise Ethernet networks that require synchronized transmit (TX) and receive (RX) paths for 10G and 40G throughput.
3. Industrial-Grade Tensile Reliability
Rated at a tension strength of $\geq 200\text{N}$, these cables are built to survive the physical stress of being routed through congested conduits and vertical shafts. This durability reduces the risk of fiber breakage during large-scale network rollouts.
4. Certified Safety Compliance
Bu LSZH (Düşük Dumanlı Sıfır Halojen) jacket is the professional standard for indoor installations. In the event of a fire, it ensures minimal smoke density and zero toxic halogen emissions, protecting critical hardware and personnel in data center environments.
Order Fulfillment & Technical Support
-
100% Fabrika Doğrulaması: Every patch cord is individually tested for Insertion Loss (IL) and Return Loss (RL) before shipping to ensure zero-defect delivery.
-
Wholesale Availability: We maintain a robust inventory of standard lengths (1m, 2m, 3m, 5m, 10m) for Toplu Siparişler and rapid project fulfillment.
-
Esnek Özelleştirme: Through our OEM\ODM services, we offer custom cable lengths, specialized labeling, and varying jacket diameters (2.0mm/3.0mm) to meet specific project specifications.
-
Uyumluluk Belgeleri: Detailed test reports and 3D interferometry verification are available to support your Kaynak Kullanımı ve denetim gereklilikleri.
